Rear Wiper Int Operation
- BCM supplies power to the rear wiper motor according to the INT operating condition.
Rear wiper INT operating condition:
- Push-button ignition switch ON
- Rear wiper switch INT

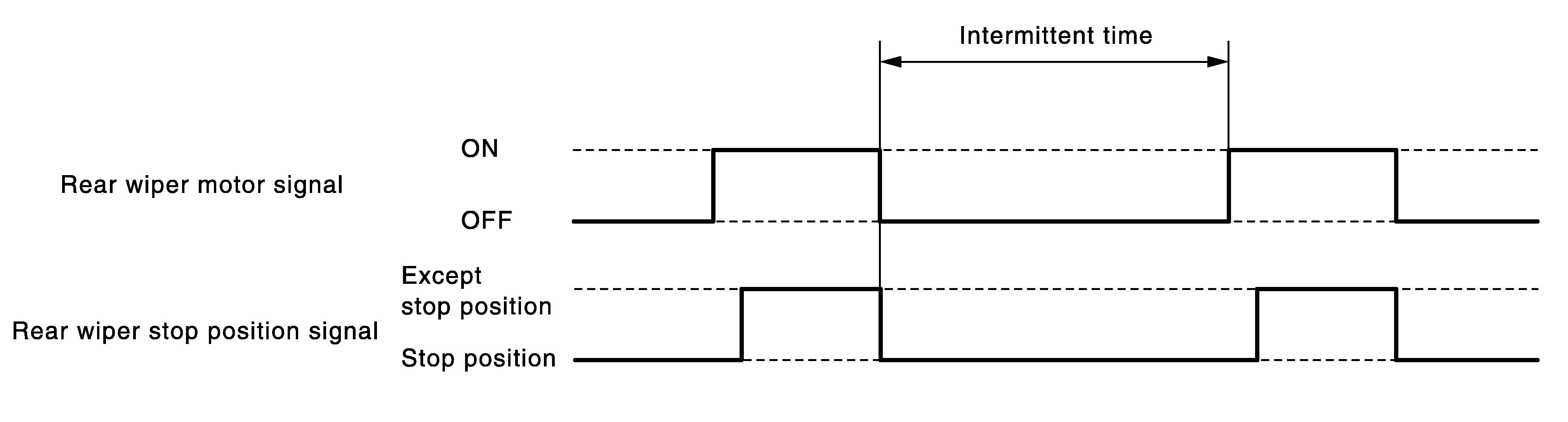

- BCM controls the rear wiper to operate once.
- BCM detects the rear wiper motor stop position.
- BCM supplies power to the rear wiper motor after an intermittent from the stop of the rear wiper motor.
