Operation And Display

Lower Touch Screen Display (Example)

GNSDB121170

Courtesy of NISSAN NORTH AMERICA, INC.

Air conditioning system state is indicated on lower touch screen display.
When any integral switch except intake switch is pressed while air conditioning system is in the ON position, the display changes to status indication display.

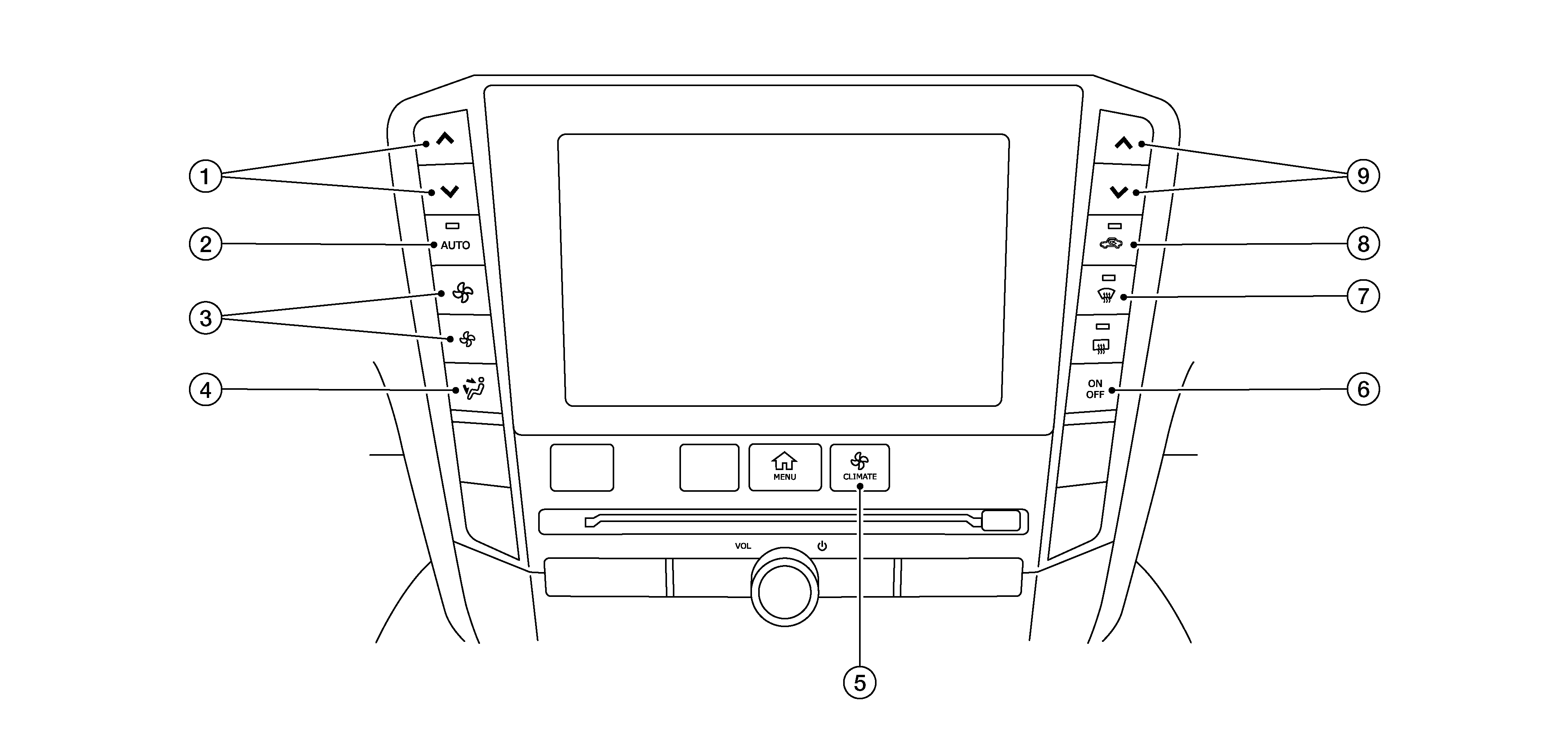

Controller (Integral switch)

GNSAWIIA0163Z-163

Courtesy of NISSAN NORTH AMERICA, INC.

	Temperature control switch (Driver side)		AUTO switch		Fan switch
	MODE switch		CLIMATE switch		ON/OFF switch
	DEF switch		Intake switch		Temperature control switch (Passenger side)

Switch Operation

Switch name	Function
Temperature control switch (Driver side)	Setting temperature is selected using this switch within a range between 18.0 deg. C (60 deg. F or 61 deg. F) and 32.0 deg. C (89 deg. F or 90 deg. F) at a rate of 0.5 deg. C (1 deg. F) per adjustment. Press: Setting temperature increases Press: Setting temperature decreases NOTE: When air conditioning system is OFF, setting temperature can not be selected.
AUTO switch	When this switch is pressed, switch indicator lamp and "AUTO" indicator on display, and then air conditioning system starts automatic control. NOTE: When air inlet is not selected manually, air inlet changes to automatic control.
Fan switch	Fan speed is selected within a range of 1st - 7th speed using this switch. NOTE: Air conditioning system turns ON when this switch is operated while air conditioning system is in OFF status. Automatic air flow control is released ("AUTO" is not displayed) when this switch is pressed while air conditioning system is in automatic control ("AUTO" is displayed).
MODE switch	Air outlet can be changes from VENT => B/L => FOOT => D/F => VENT each time this switch is pressed. NOTE: Air outlet can be changed when air conditioning system is in the OFF position. Automatic air outlet control is released ("AUTO" is not displayed) when this switch is pressed while air conditioning system is in automatic control ("AUTO" is displayed).
CLIMATE switch	"Climate" menu is indicated on display when this switch is pressed.
ON/OFF switch	When this switch is pressed while air conditioning system is operated, air conditioning system turns OFF. When air conditioning system turns OFF, air inlet and air outlet become the following status. Air outlet: FOOT Air inlet: Fresh air intake When this switch is pressed while air conditioning system is not operated, air conditioning system turns ON in the condition before turning OFF.
DEF switch	DEF mode (switch indicator lamp) changes between ON <=> OFF each time this switch is pressed. When DEF switch is pressed while air conditioning system is in the ON position When DEF mode turns ON, air conditioning system becomes the following status. Air outlet: DEF Air flow: Automatic control (If fan speed other than "AUTO" is selected before pressing DEF switch, fan speed is manual control) Air inlet: Fresh air intake Compressor: ON NOTE: A/C switch indicator is not changed from before turning ON DEF mode. When DEF mode turns OFF, air conditioning system status returns to the previous status before DEF mode is selected. But, the following state is continued. Air inlet: Fresh air intake Compressor: ON NOTE: A/C switch indicator is not changed from before turning OFF DEF mode. When DEF switch is pressed while air conditioning system is in the OFF position Air conditioning system turns ON and becomes the following status. Air outlet: DEF Air flow: Automatic control Air inlet: Fresh air intake Compressor: ON When DEF mode turns OFF, entire air conditioning system is set to auto mode. NOTE: Automatic control is released when this switch is pressed while air conditioning system is in automatic control.
Intake switch	Air inlet changes between recirculation (REC) <=> fresh air intake (FRE) each time this switch is pressed. Intake switch indicator lamp ON: Recirculation Intake switch indicator lamp OFF: Fresh air intake NOTE: Air inlet can be changed when air conditioning system is in the OFF position.
Temperature control switch (Passenger side)	The system is set to LH/RH independent status ("DUAL" displays) by operating this switch. Outlet air flow temperature of passenger side can be changed without changing outlet air flow temperature of driver side. Setting temperature is selected using this switch within a range between 18.0 deg. C (60 deg. F or 61 deg. F) and 32.0 deg. C (89 deg. F or 90 deg. F) at a rate of 0.5 deg. C (1 deg. F) per adjustment. Press: Setting temperature increases Press: Setting temperature decreases NOTE: When air conditioning system is OFF, setting temperature can not be selected. When DEF mode is ON, temperature control switch (passenger side) is inoperative.
