Rear Controller Operation

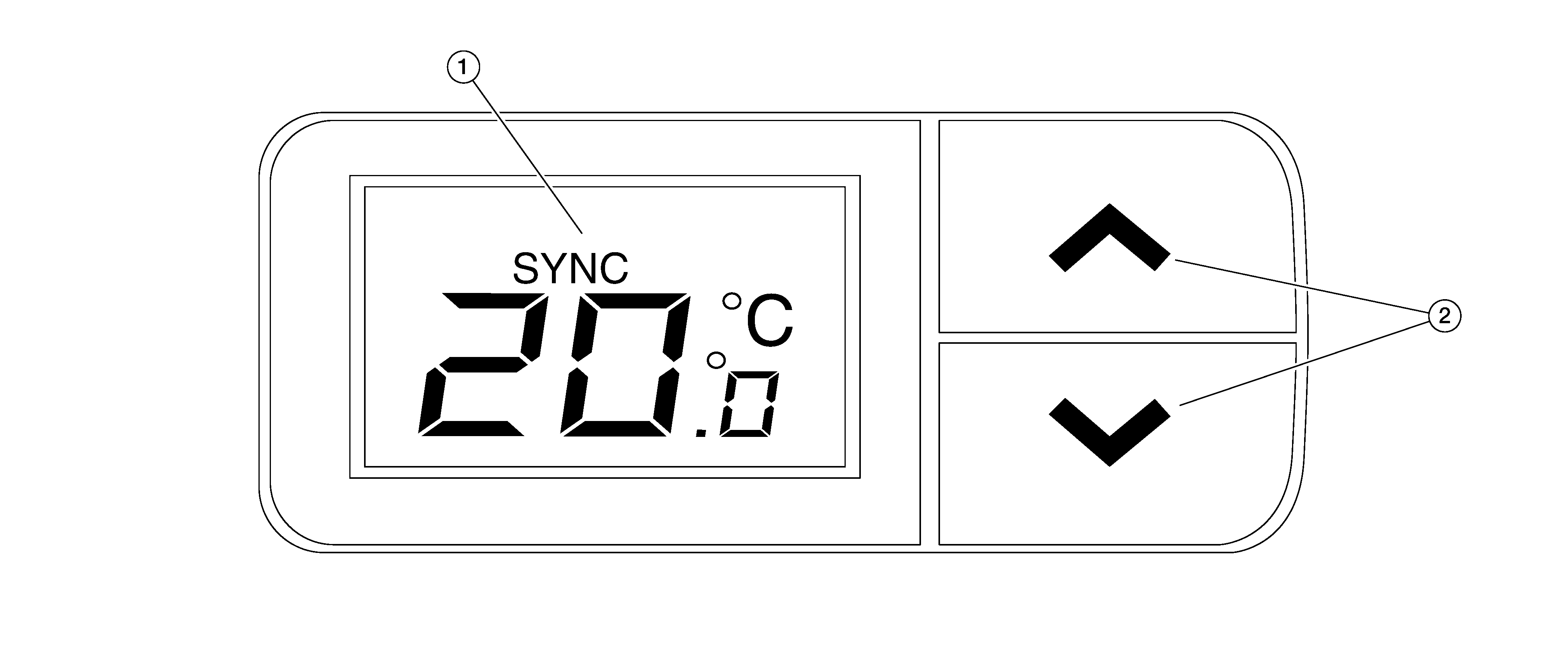

Controller (Rear Air Control)

GNSALIIA0107Z-107Courtesy of NISSAN NORTH AMERICA, INC.

1.

Display

2.

Temperature control switch

Switch Operation

Temperature control switch

Setting temperature is selected using this switch with in a range between 18.0 deg. C (60 deg. F of 61 deg. F) - 32.0 deg. C (89 deg. F or 90 deg. F).

  • SYMBOL : Press: Set temperature increases.
  • SYMBOL : Press: Set temperature decreases.
