Steering Angle Main Control Module Connector End View (E150)

Connector Types:  Y02FB-1V

Connector Color:  BLACK

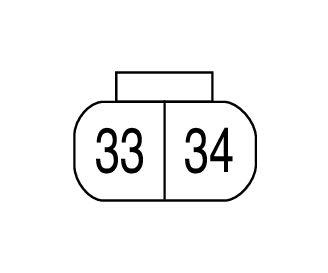

Fig 1: Terminal-side

Courtesy of NISSAN NORTH AMERICA

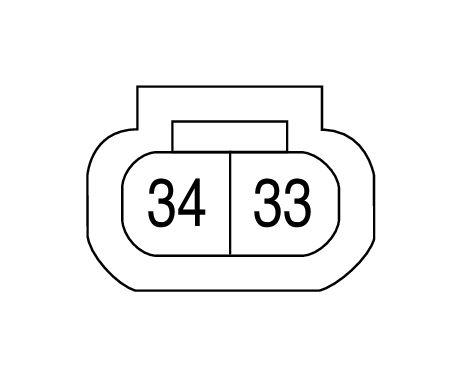

Fig 2: Harness-side

Courtesy of NISSAN NORTH AMERICA

Terminal No.	Color of Wire	Signal Name (Specification)
33	W	BATTERY
34	B	GROUND
