Steering Angle Sub Control Module Connector End View (E228)

Connector Types:  Y03FB-L

Connector Color:  BLACK

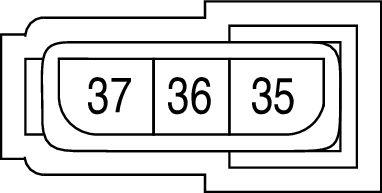

Fig 1: Terminal-side

Courtesy of NISSAN NORTH AMERICA

Fig 2: Harness-side

Courtesy of NISSAN NORTH AMERICA

Terminal No.	Color of Wire	Signal Name (Specification)
35	W/L	W PHASE
36	W	V PHASE
37	B	U PHASE
