HUD Reprogram Connector End View (M453)

Connector Types: TH12MW-NH

Connector Color: WHITE

Fig 1: Terminal-side

GNSW6256

Courtesy of NISSAN NORTH AMERICA

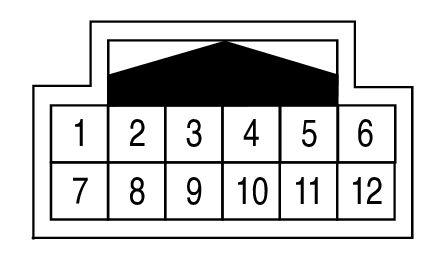

Fig 2: Harness-side

GNSW6635

Courtesy of NISSAN NORTH AMERICA

Terminal No.	Color of Wire	Signal Name (Specification)
1	B	REPRO GROUND
2	R	DET N
3	V	RST N
4	L	SCS N
5	G	SCLK
6	Y	MOSI
7	LG	MISO
8	SB	RDY N
9	-	-
10	-	-
11	-	-
12	-	-
