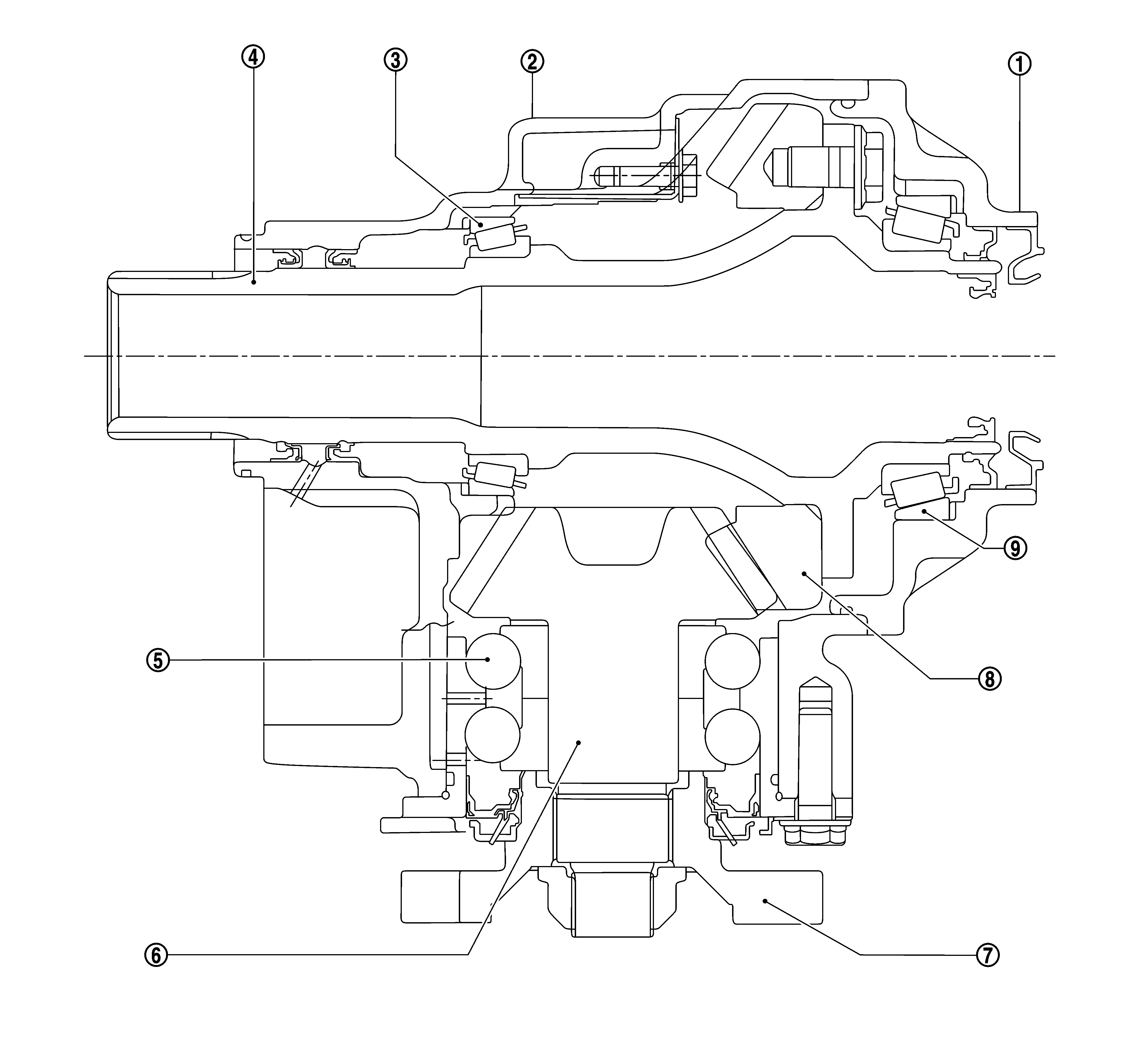

Sectional View

GNSJSDIA3966Z-966Courtesy of NISSAN NORTH AMERICA, INC.

SYMBOL

Transfer cover

SYMBOL

Transfer case

SYMBOL

Ring gear bearing (transfer case side)

SYMBOL

Ring gear shaft

SYMBOL

Pinion bearing

SYMBOL

Drive pinion

SYMBOL

Companion flange

SYMBOL

Ring gear

SYMBOL

Ring gear bearing (transfer cover side)
