Exploded View

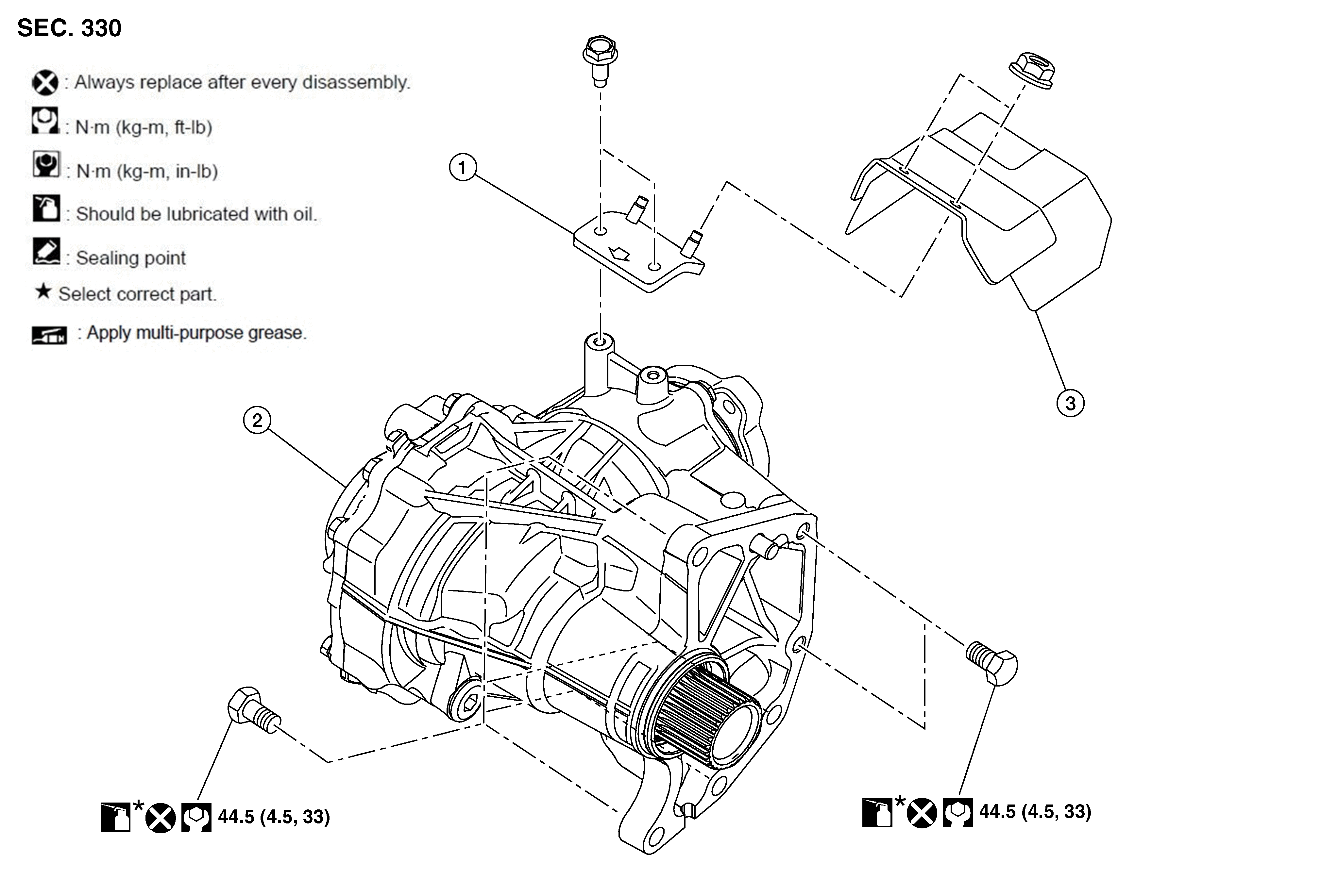

Fig 1: Transfer Assembly Components With Torque Specifications
GNSAWDIA0051Z-051Courtesy of NISSAN NORTH AMERICA, INC.

1.

Transfer gusset

2.

Transfer assembly

3.

Transfer gusset rear

SYMBOL* : Apply anti-corrosive oil.
