Power Window Control System (Diagnostics, Service Information)
>>
System Description
>>
System
>>
System Diagram
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.

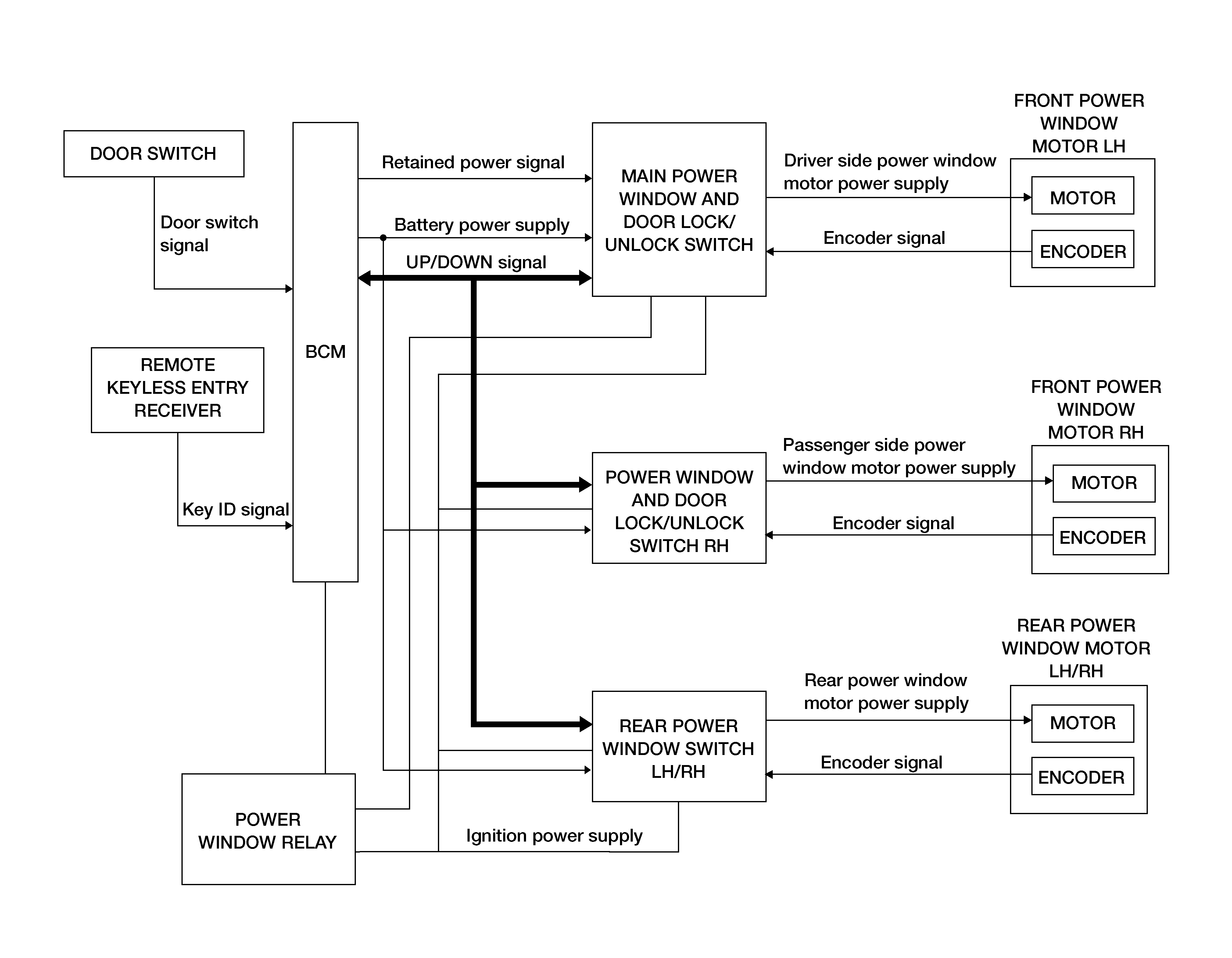

System Diagram
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
