Disassembly and Assembly: Disassembly

  1. Remove inner socket lock nut (A) and outer socket (1).

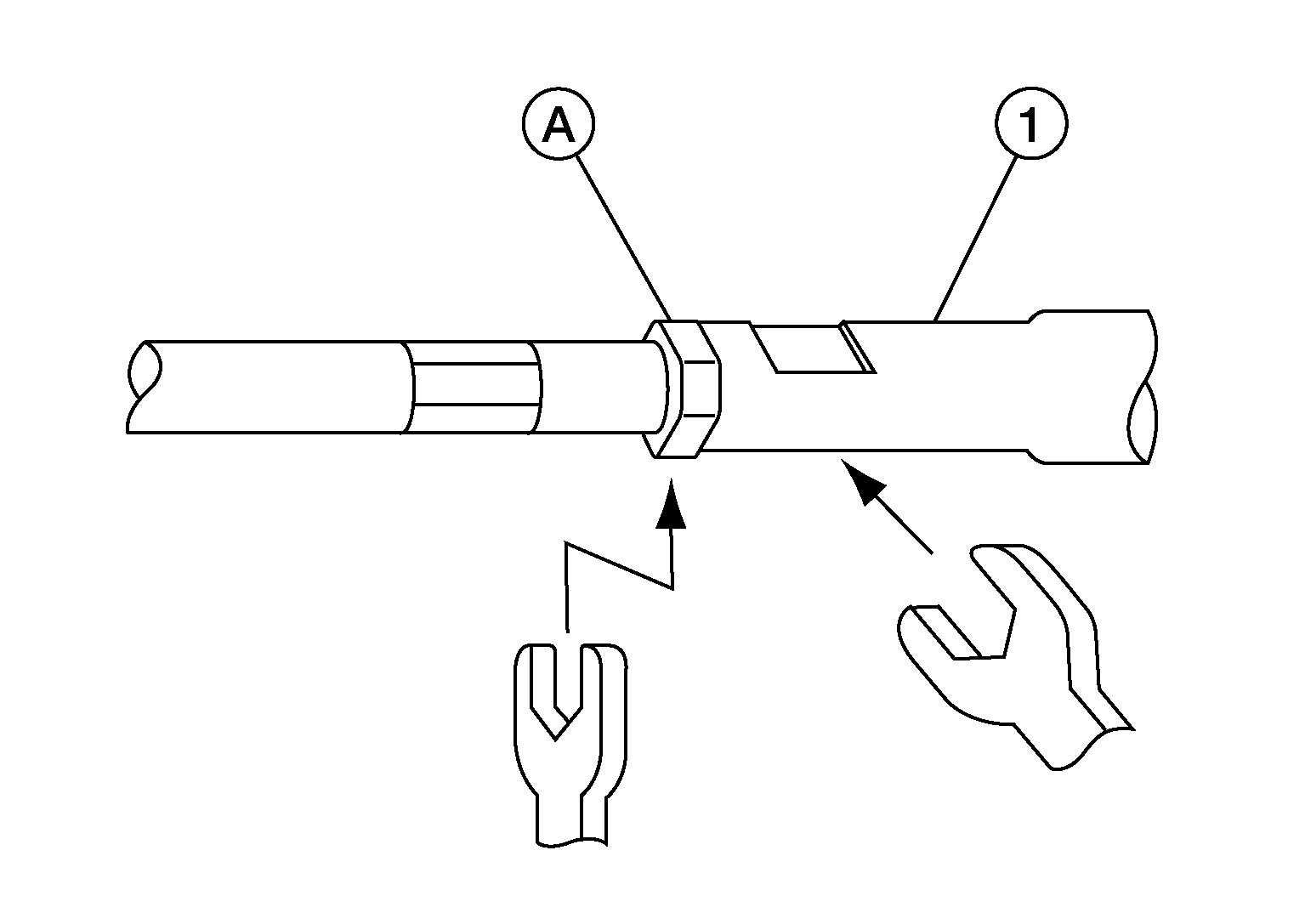

    GNSAWGIA0334Z-334Courtesy of NISSAN NORTH AMERICA, INC.
    CAUTION: To prevent damage, hold outer socket (1) across flats using suitable tool while loosening inner socket lock nut (A).
  2. Remove boot clamps and boot.
  3. Remove inner socket.

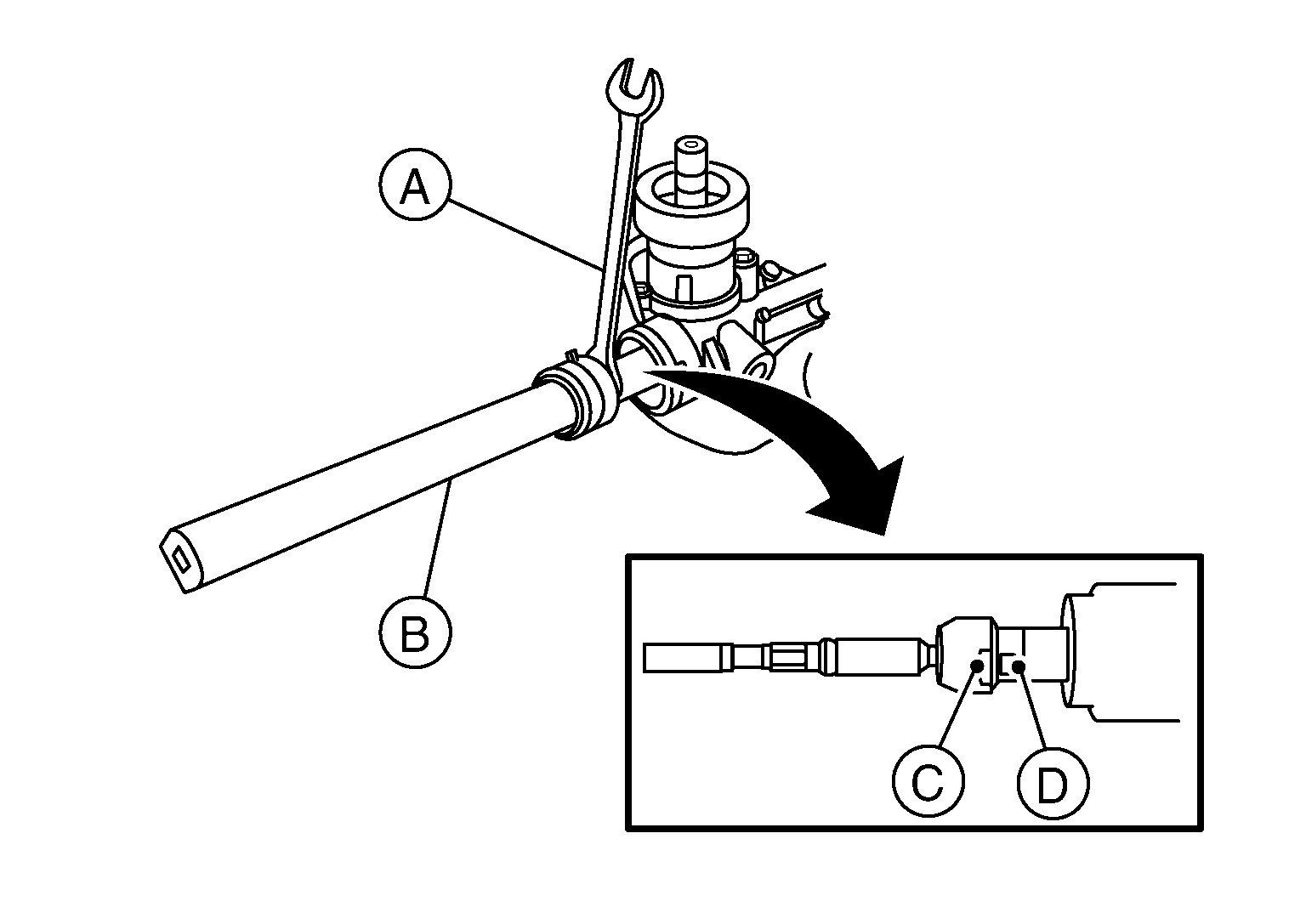

    GNSDB118214Courtesy of NISSAN NORTH AMERICA, INC.
    CAUTION: To prevent damage to the rack bar when removing the inner socket, hold suitable tool (A) across rack bar flats (D) while turning suitable tool (B) across inner socket flats (C).
  4. Remove spacer.
