Exploded View

MECHANICAL STEERING COLUMN

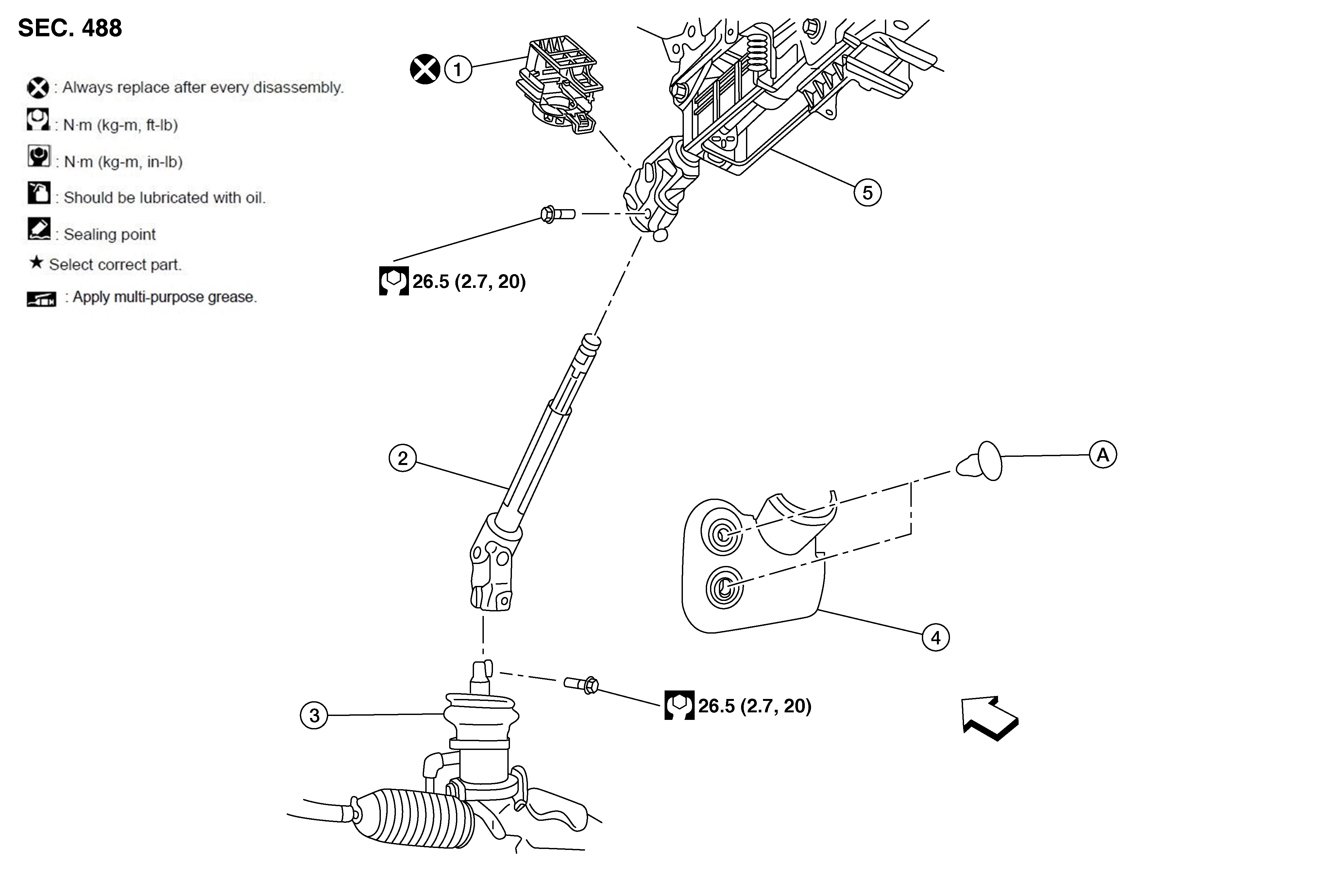

Fig 1: Lower Joint With Torque Specifications - Mechanical Steering Column
GNSAWGIA0021Z-021Courtesy of NISSAN NORTH AMERICA, INC.

1.

Collar

2.

Lower joint

3.

Steering gear

4.

Lower joint cover

5.

Steering column

A.

Clip

SYMBOL

Front

ELECTRIC STEERING COLUMN

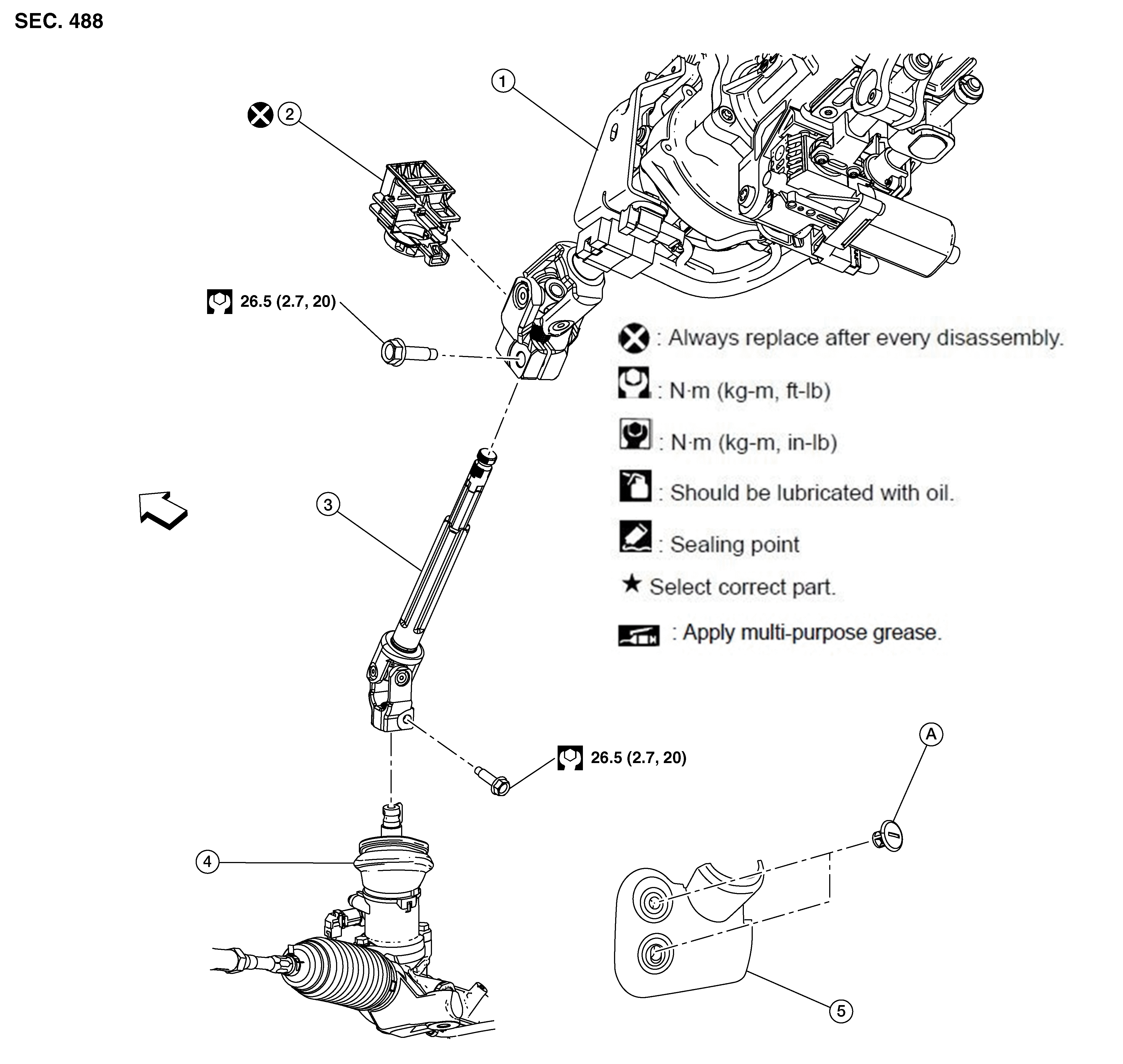

Fig 2: Lower Joint With Torque Specifications - Electric Steering Column
GNSAWGIA0052Z-052Courtesy of NISSAN NORTH AMERICA, INC.

1.

Steering column

2.

Collar

3.

Lower joint

4.

Steering gear

5.

Lower joint cover

A.

Clip

SYMBOL

Front
