Work Procedure

CONSULT

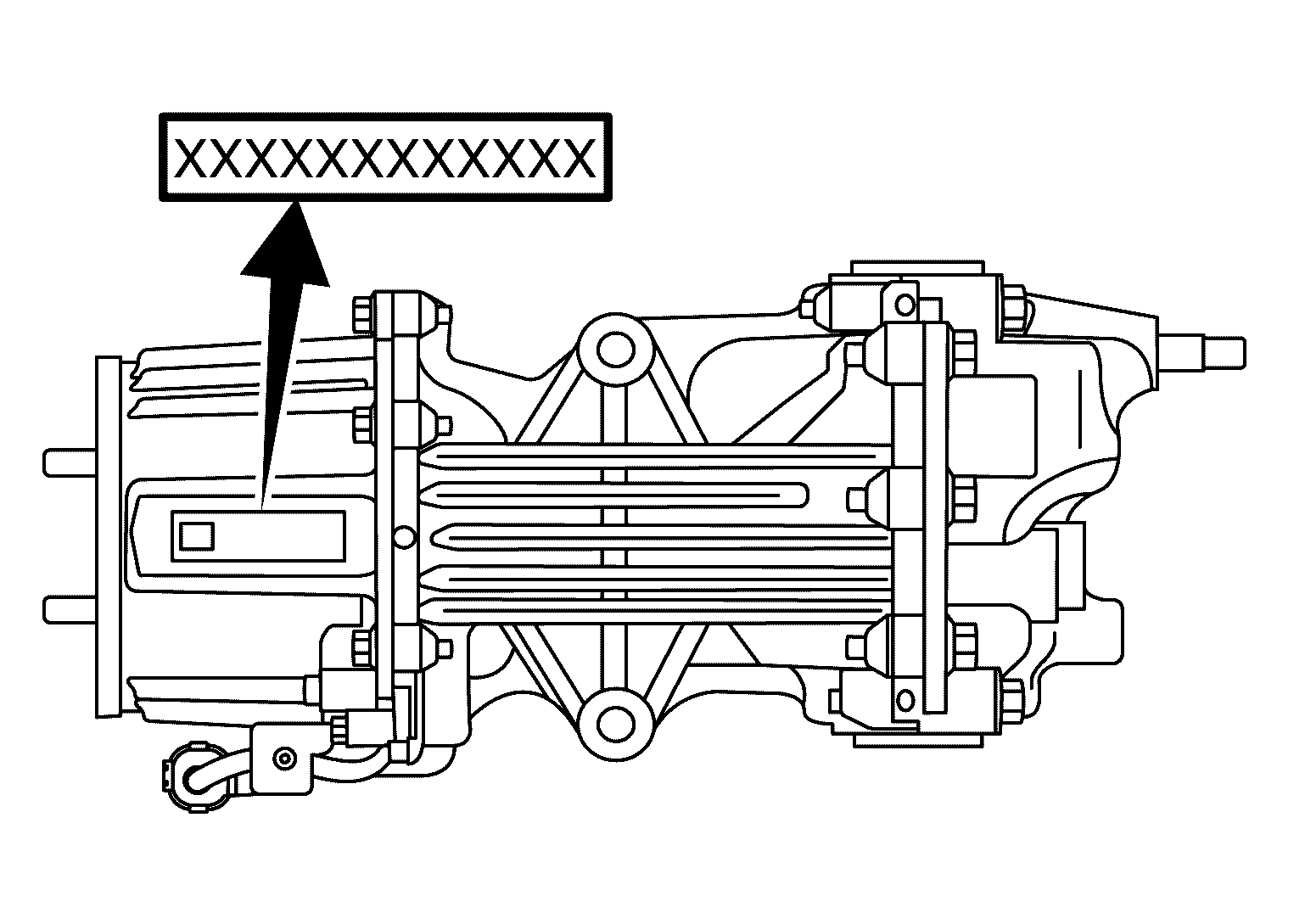

1. Confirm the unit characteristics of electric controlled coupling.

   Courtesy of NISSAN NORTH AMERICA, INC.

   NOTE: Unit characteristics is 12-digit alphanumeric.
2. Ignition switch OFF to ON.
3. Select "UNIT CHARACTERISTICS WRITE" in "Work support" mode of "ALL MODE AWD/4WD".
4. Input unit characteristics.
5. Select "Start".
6. Check that "UNIT CHARACTERISTICS WRITE COMPLETED" is displayed.

Work End.
