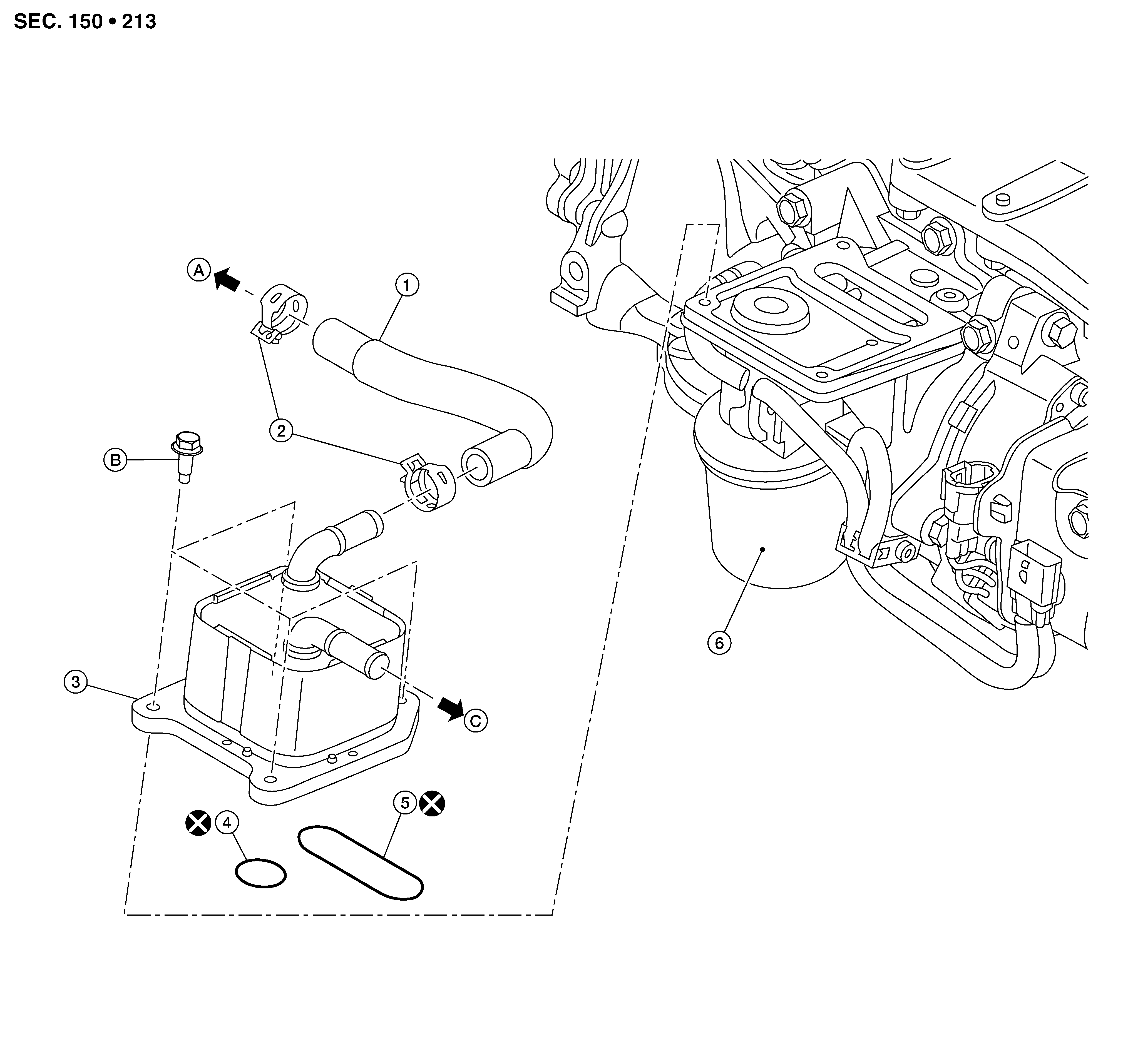

Exploded View
|
1. |
Water hose |
2. |
Clamp |
3. |
Oil cooler |
|
4. |
O-ring |
5. |
O-ring |
6. |
Oil filter |
|
A. |
To water pump housing. Refer to Exploded View . |
B. |
Refer to Removal and Installation . |
C. |
To CVT water hose A. Refer to Exploded View . |
