Exploded View

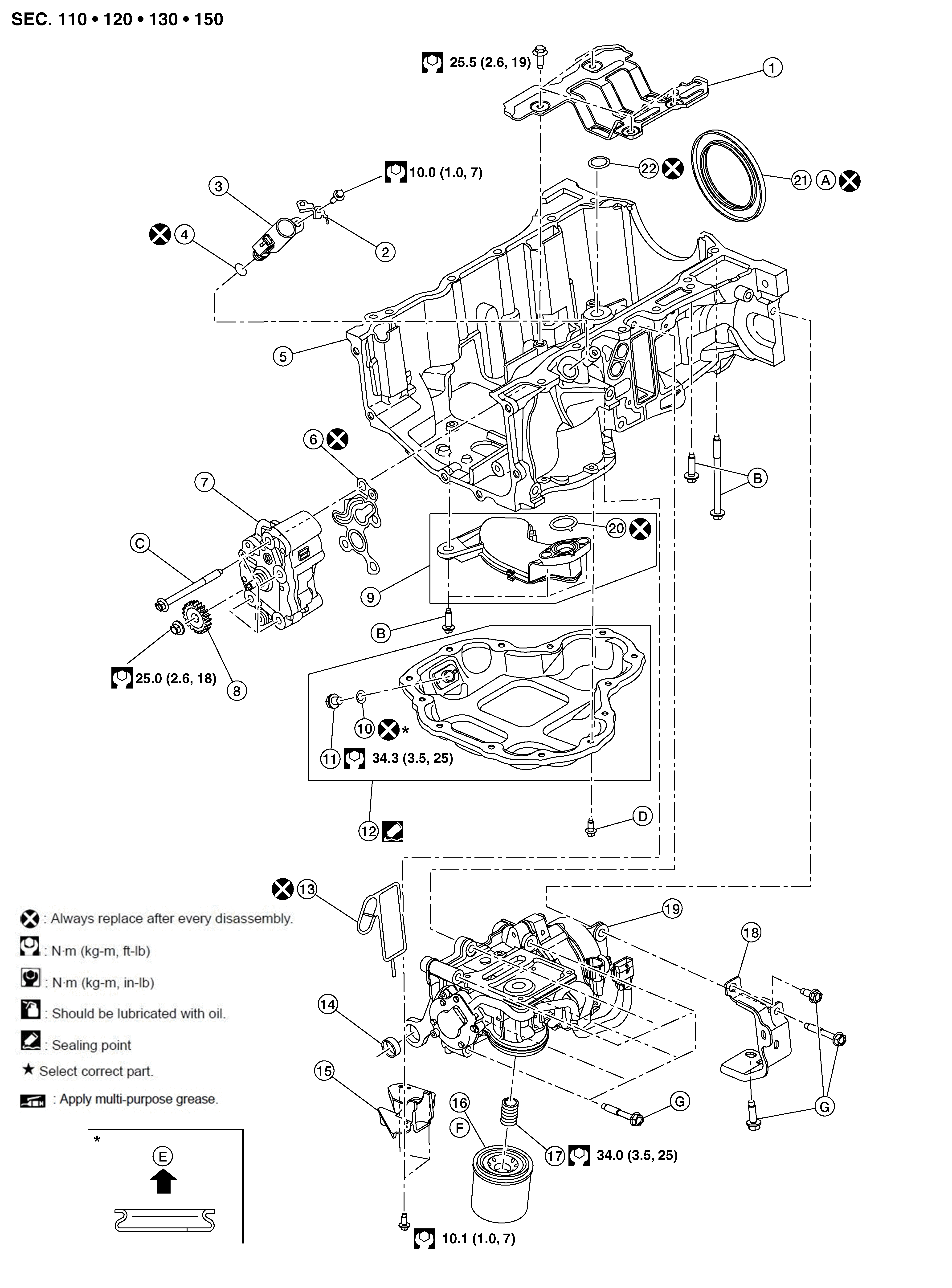

Fig 1: Oil Pump Components With Torque Specifications

Courtesy of NISSAN NORTH AMERICA, INC.

1.	Baffle plate	2.	Harness bracket	3.	Engine oil pressure control solenoid valve
4.	O-ring	5.	Oil pan (upper)	6.	Oil pump gasket
7.	Oil pump	8.	Oil pump sprocket	9.	Oil strainer
10.	Drain plug washer	11.	Drain plug	12.	Oil pan (lower)
13.	VCR* actuator gasket	14.	VCR* actuator pin	15.	VCR* actuator pin retainer
16.	Oil filter	17.	Oil filter adapter	18.	VCR* actuator harness bracket
19.	VCR* actuator	20.	O-ring	21.	Rear oil seal
22.	O-ring	A.	Refer to Removal and Installation .	B.	Refer to Removal and Installation .
C.	Refer to Removal and Installation .	D.	Refer to Removal and Installation .	E.	Oil pan side
F.	Refer to Removal and Installation .	G.	Refer to Removal and Installation .
*VCR - Variable Compression Ratio
