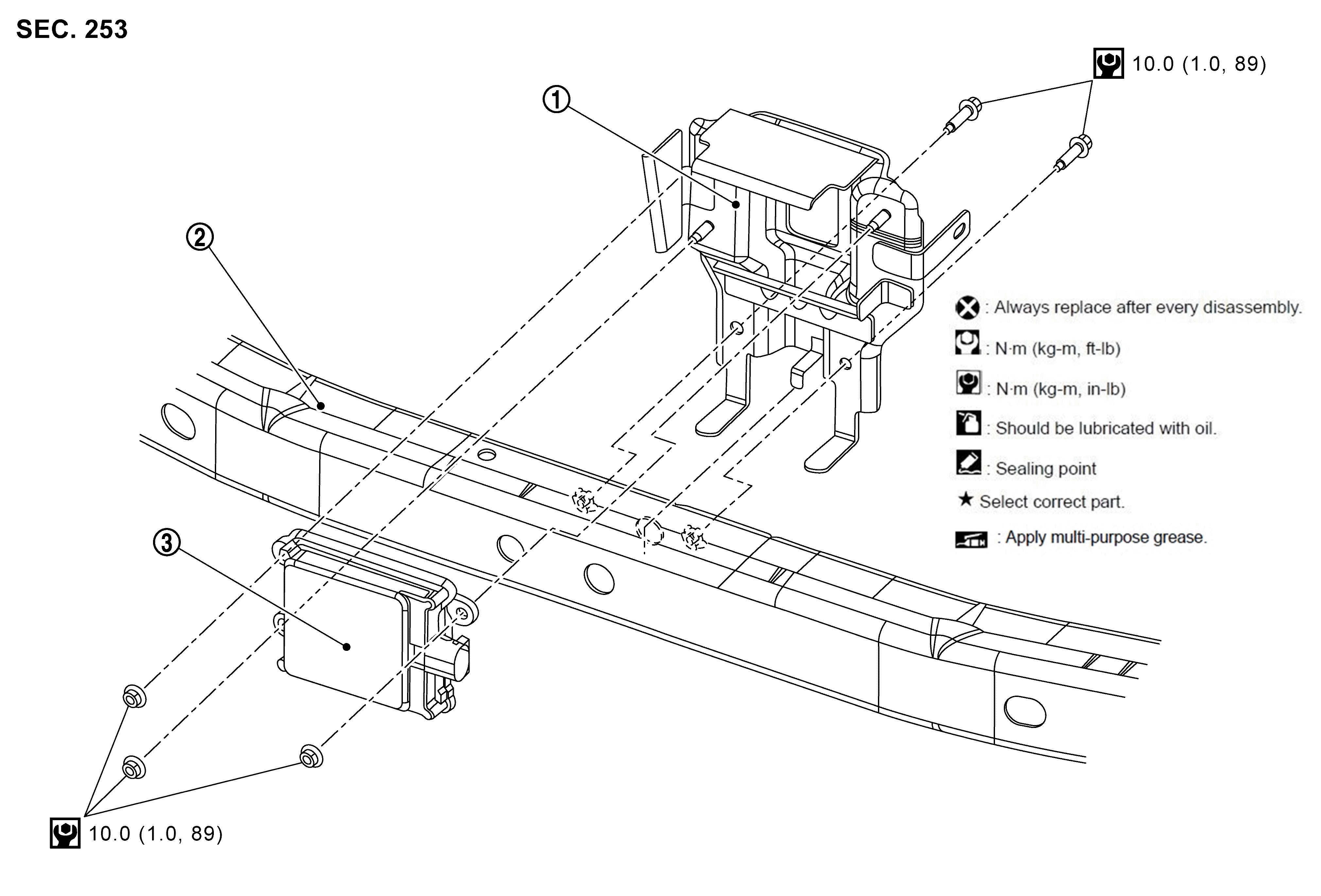

DISTANCE SENSOR : Exploded View
CAUTION:
Always perform the radar alignment and check the operation after the replacement, removal and installation of Distance sensor. Refer to Work Procedure
.
|
|
Bracket |
|
Front bumper reinforcement |
|
Distance sensor |
|
|
: N.m (kg-m, in-lb) |
||||
