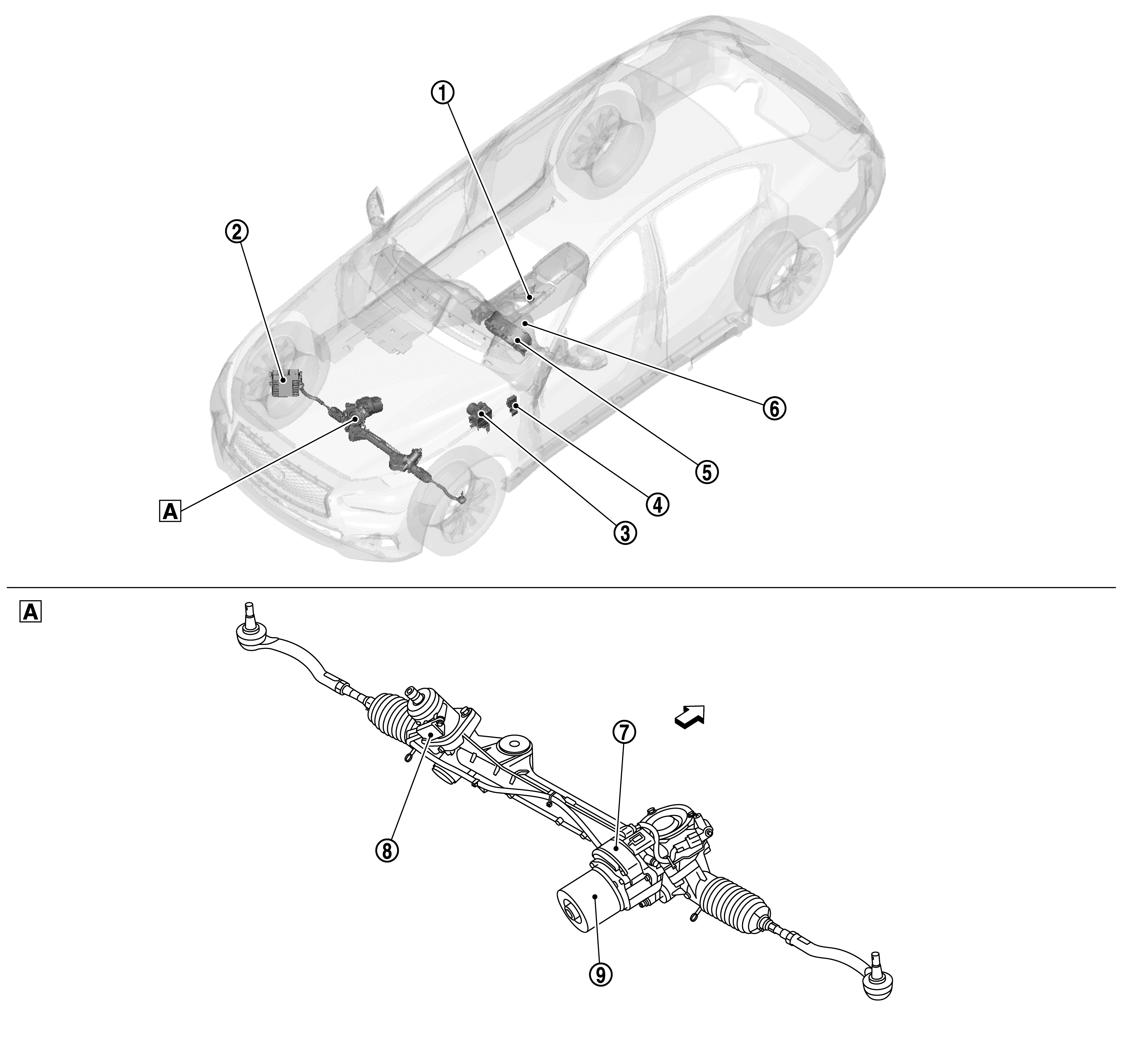

Drive mode select switch |
- Drive mode is selectable among PERSONAL, SPORT, and STANDARD by the operating the switch.
- Output the status of drive mode to the chassis control module.
- For detailed installation location, Refer to Component Location
.
|
 |
ECM |
- Transmits mainly the following signals to power steering control module via CAN communication.
- Receives mainly the following signals from power steering control module via CAN communication.
- Battery supply current signal
- For detailed installation location, Refer to Component Location
.
|
 |
ABS actuator and electric unit (control unit) |
- Transmits mainly the following signals to power steering control module via CAN communication.
- Vehicle speed signal (ABS)
- For detailed installation location, Refer to Component Location
.
|
 |
Chassis control module |
- Transmits mainly the following signals to power steering control module via CAN communication.
- For detailed installation location, Refer to Component Location
.
|
 |
Combination meter
(Power steering warning lamp) |
- Transmits mainly the following signals to power steering control module via CAN communication.
- Vehicle speed signal (Meter)
- For detailed installation location, Refer to Component Location
.
- Turns ON the power steering warning lamp according to the signal from the power steering control module via CAN communication.
- For power steering warning lamp, Refer to Warning / Indicator / Chime List .
|
 |
Steering angle sensor |
- Transmits mainly the following signals to power steering control module via CAN communication.
- Steering angle sensor signal
- For detailed installation location, Refer to Component Location
.
|
 |
Steering gear assembly |
Power steering control module |
Refer to Component Description . |
 |
Power steering torque sensor |
 |
EPS motor |
