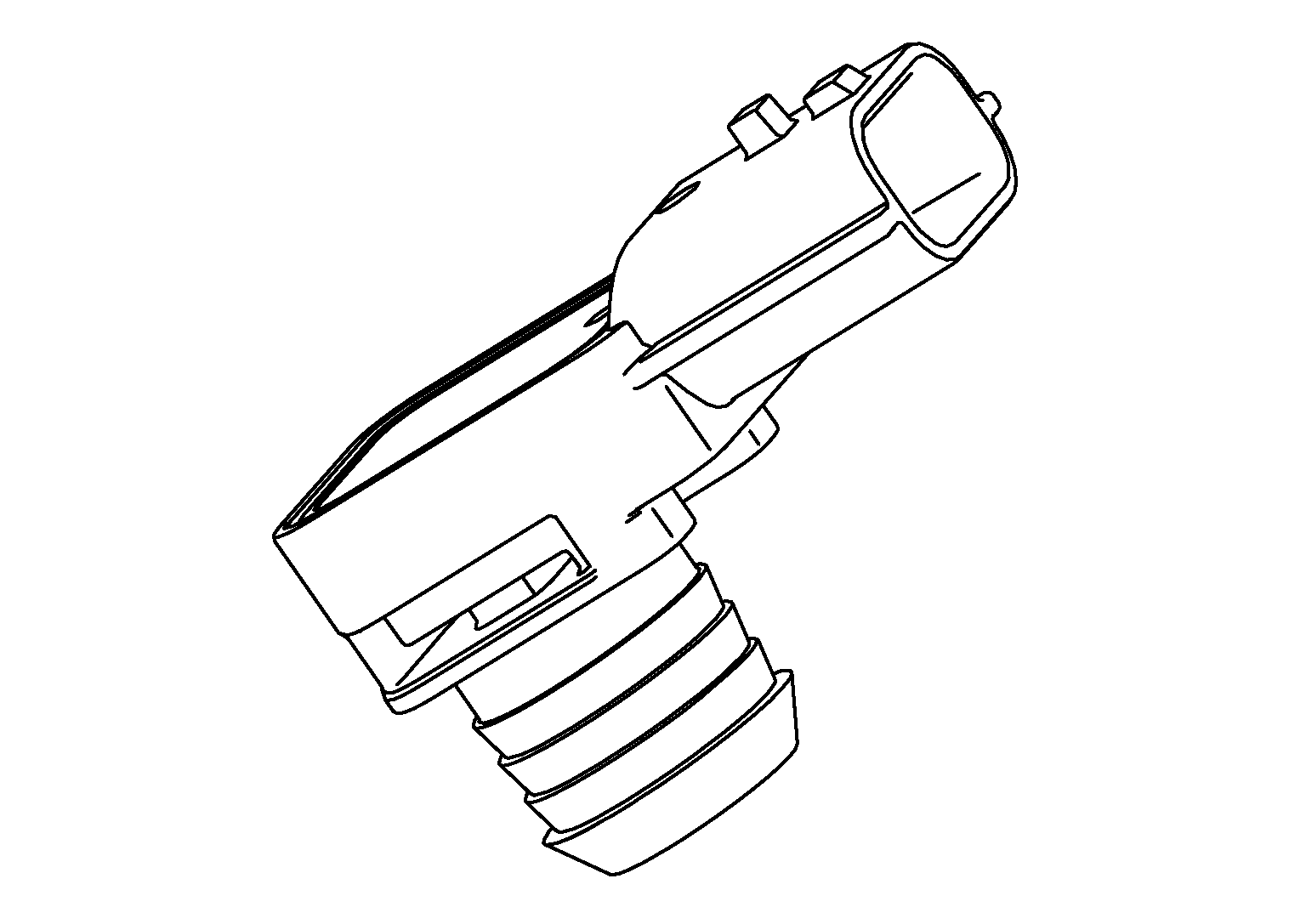

Brake Vacuum Sensor

FUNCTIONS WITHIN THE SYSTEM

Detects the vacuum in brake booster and transmits converted electric signal to ABS actuator and electric unit (control unit).

Courtesy of NISSAN NORTH AMERICA, INC.

INDIVIDUAL FUNCTIONS WITHIN THE SYSTEM

Detects the vacuum in brake booster.

INDIVIDUAL OPERATION

Brake vacuum sensor converts the brake vacuum sensor signal.

COMPONENT LOCATION

Refer to Component Location .
