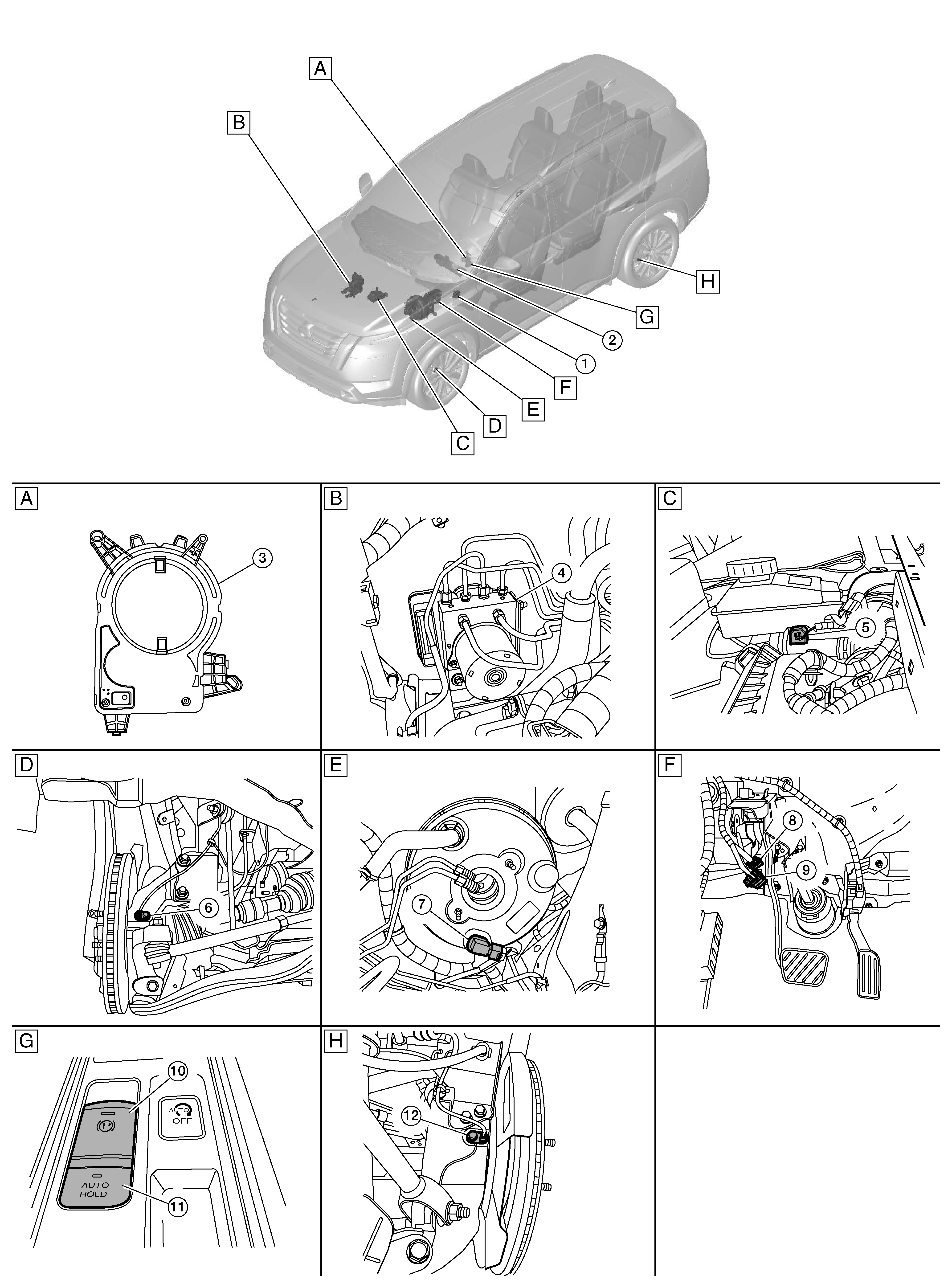

Component Location
| A. | Steering column area | B. | Engine room (RH) | C. | Engine room (LH) |
| D. | Front left wheel | E. | Engine room (LH) | F. | Brake pedal area |
| G. | Center console area | H. | Rear left wheel | ||
| No. | Component | Function |
|---|---|---|
| 1. | Chassis control module | Mainly transmits the following signals to ABS actuator and electric unit (control unit) via CAN communication:
Refer to Component Location for detailed component location. |
| 2. | Combination meter | Mainly transmits the following signals to ABS actuator and electric unit (control unit) via CAN communication:
Mainly receives the following signals from ABS actuator and electric unit (control unit) via CAN communication:
Refer to Component Part Location (Full TFT Meter) or Component Part Location (7 Inch Information Display) for detailed component location. |
| 3. | Steering angle sensor |
|
| 4. | ABS (Anti-lock Braking System) actuator and electric unit (control unit) | Refer to ABS Actuator and Electric Unit (Control Unit) . |
| 5. | Brake fluid level switch | Refer to Brake Fluid Level Switch . |
| 6. | Front wheel sensor LH (RH similar) | Refer to Wheel Sensor and Sensor Rotor . |
| 7. | Vacuum sensor | Refer to Vacuum Sensor . |
| 8. | Brake pedal position switch | Refer to Component Location for detailed component location. |
| 9. | Stop lamp switch | Refer to Component Location for detailed component location. |
| 10. | Parking brake switch | Refer to Component Location for detailed component location. |
| 11. | Automatic brake hold switch | |
| 12. | Rear wheel sensor LH (RH similar) | Refer to Wheel Sensor and Sensor Rotor . |
