| 1. |

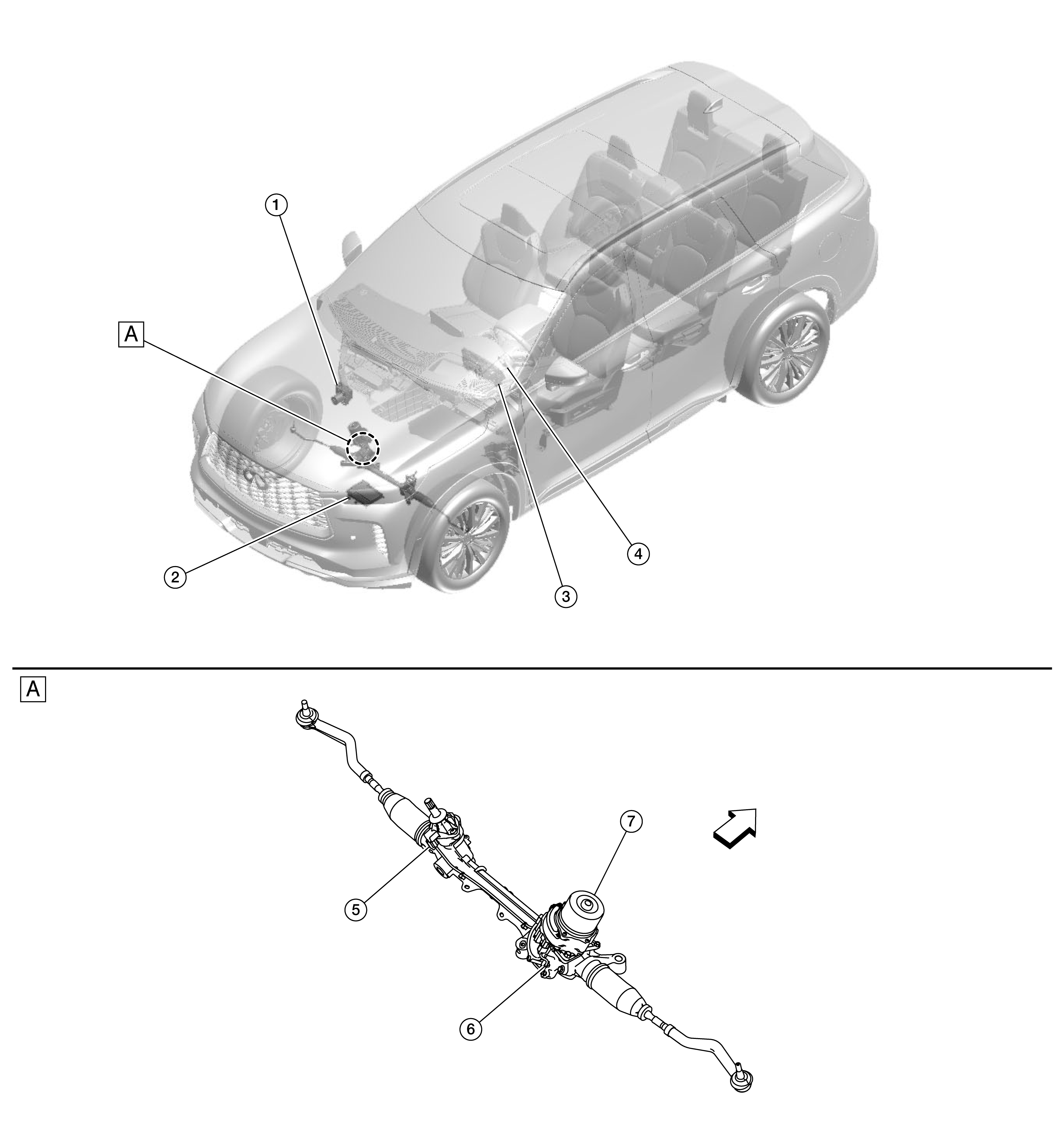

ABS (Anti-lock Braking System) actuator and electric unit (control unit) |
Transmits the vehicle speed signal (ABS) to EPS control unit via CAN communication. Refer to
Component Location
for detailed component location. |
| 2. |
ECM (Engine Control Module) |
- Transmits the engine status signal to EPS control unit via CAN communication.
- Receives the battery supply current signal from EPS control unit via CAN communication.
Refer to Component Location
for detailed component location. |
| 3. |
Combination meter (Power steering warning lamp) |
- Transmits the vehicle speed signal (meter) to EPS control unit via CAN communication.
- Turns ON the power steering warning lamp according to the signal from the EPS control unit via CAN communication.
For power steering warning lamp, refer to
Warning Lamp/Indicator Lamp . Refer to Component Location
(7 inch information display meter) or Component Location
(Full TFT meter) for detailed component location. |
| 4. |
Steering angle sensor |
Transmits the steering angle sensor signal to EPS control unit via CAN communication. Refer to
Component Location
for detailed component location. |
| 5. |
Steering gear assembly |
Torque sensor |
Refer to Steering Gear Assembly . |
| 6. |
EPS (Electric Power Steering) control unit |
| 7. |
EPS motor |
