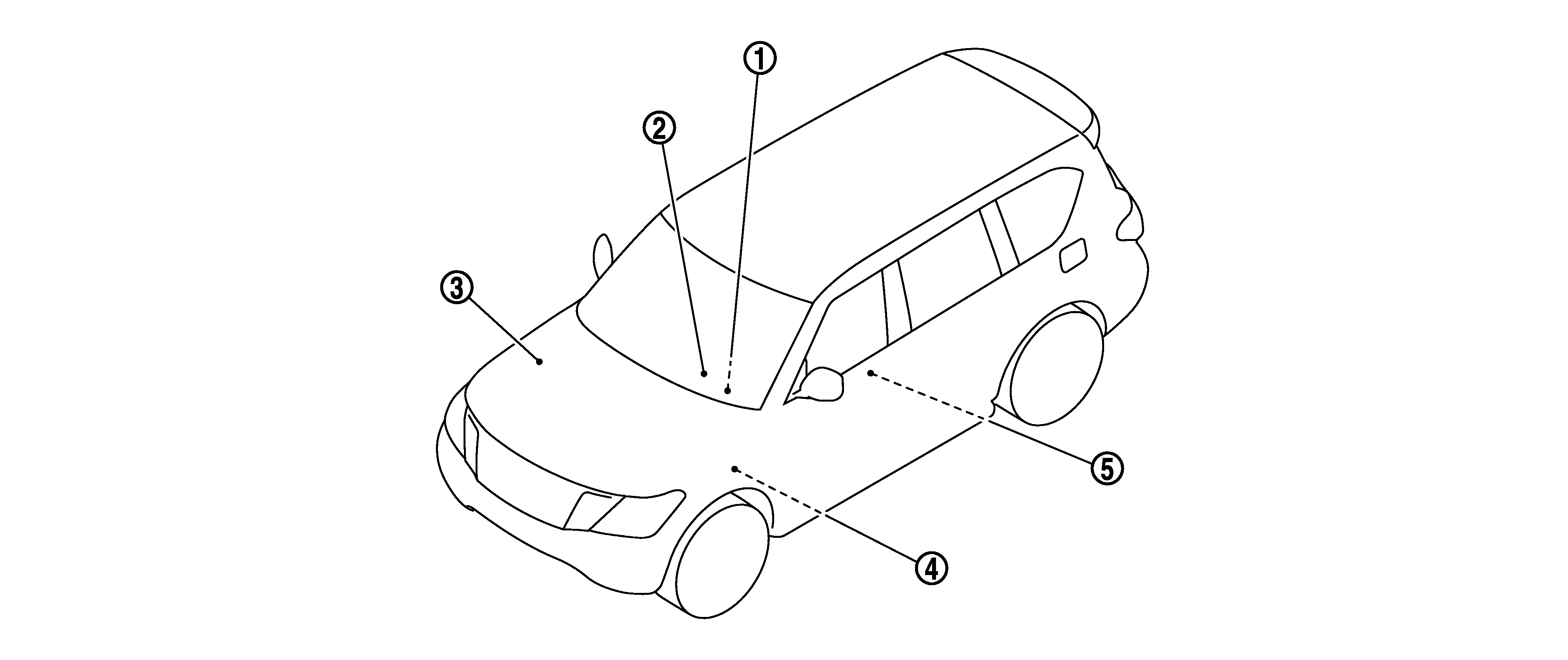

Component Location
| 1. | BCM Refer to Component Location . |
2. | Push-button ignition switch | 3. | IPDM E/R Refer to Component Location . |
| 4. | Stop lamp switch | 5. | TCM Refer to Component Location . |
| BCM | Reference |
|---|---|
| BCM | Refer to Component Location . |
| Ignition relay (Built-in IPDM E/R) | Refer to Component Description . |
| Ignition relay-1 | |
| Accessory relay | Refer to Component Description . |
| Blower relay | Refer to Component Description . |
| Push-button ignition switch | Refer to Component Description . |
| Stop lamp switch | Refer to Component Description . |
| TCM (Transmission range switch) | Refer to Component Description . |
