Special Tools

WARNING: This page is about a different car, the 2003 Isuzu Rodeo Sport, 2003 Isuzu Rodeo, 2002 Isuzu Rodeo Sport, and 2002 Isuzu Rodeo. However, it is still accessible from the selected car via links, so may be relevant.

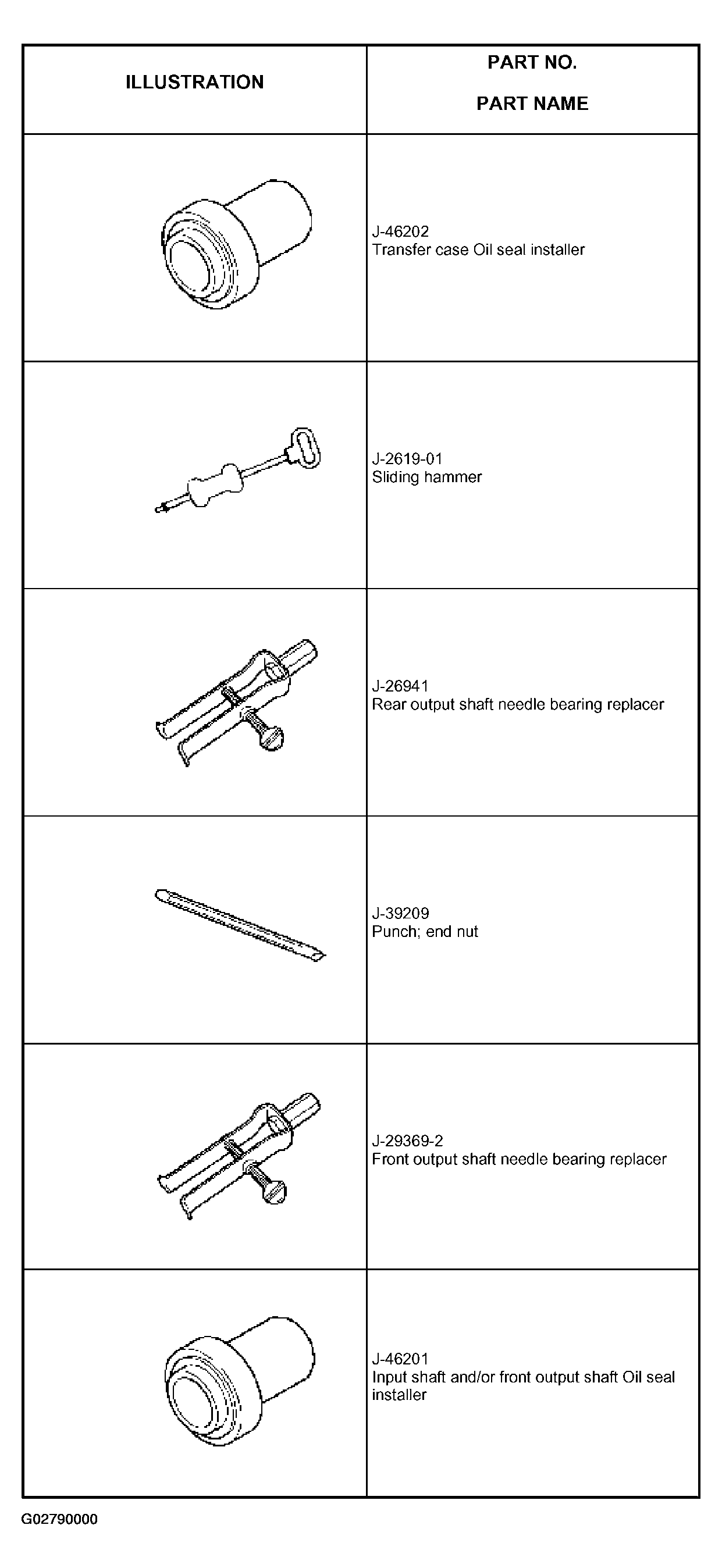

Fig 1: Special Tools (1 Of 2)
G02790000Courtesy of ISUZU MOTOR CO.

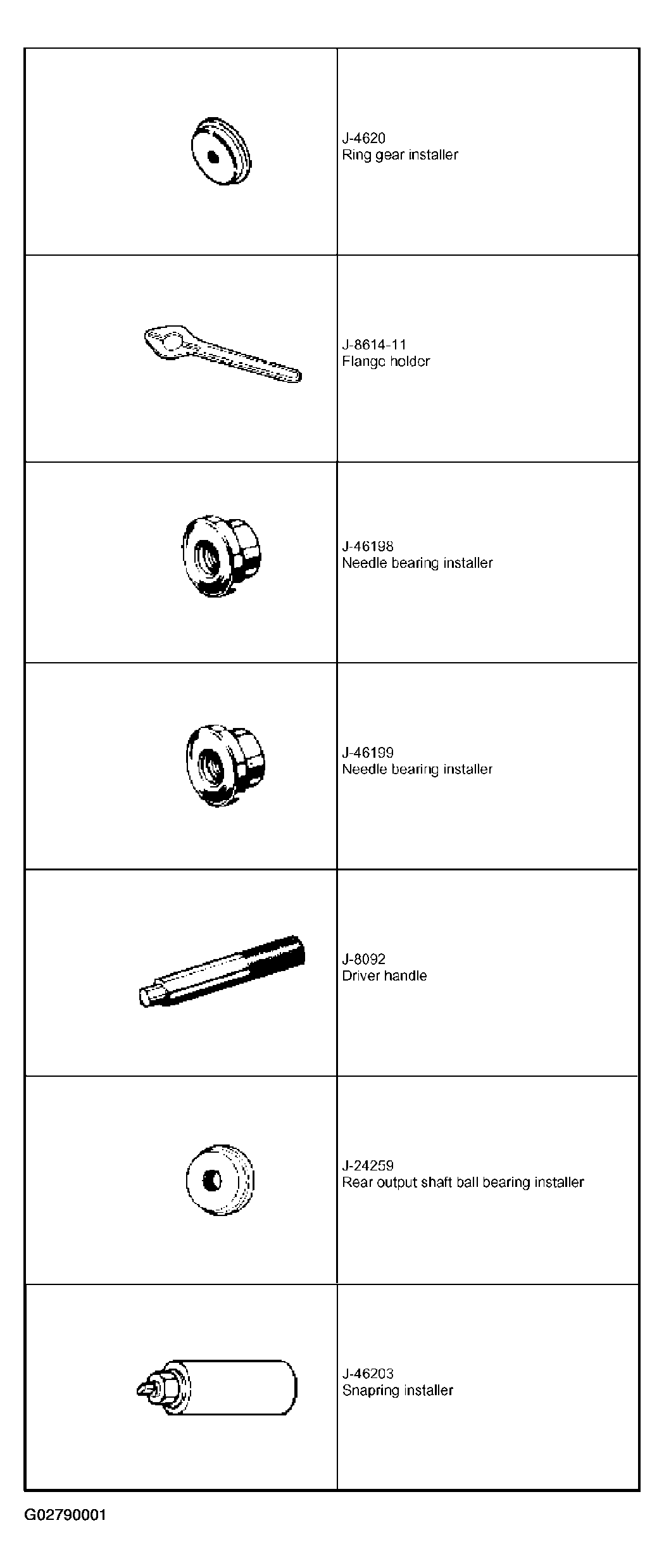

Fig 2: Special Tools (2 Of 2)
G02790001Courtesy of ISUZU MOTOR CO.
