Transfer Controller Pin Assignment

WARNING: This page is about a different car, the 2003 Isuzu Rodeo Sport, 2003 Isuzu Rodeo, 2002 Isuzu Rodeo Sport, and 2002 Isuzu Rodeo. However, it is still accessible from the selected car via links, so may be relevant.

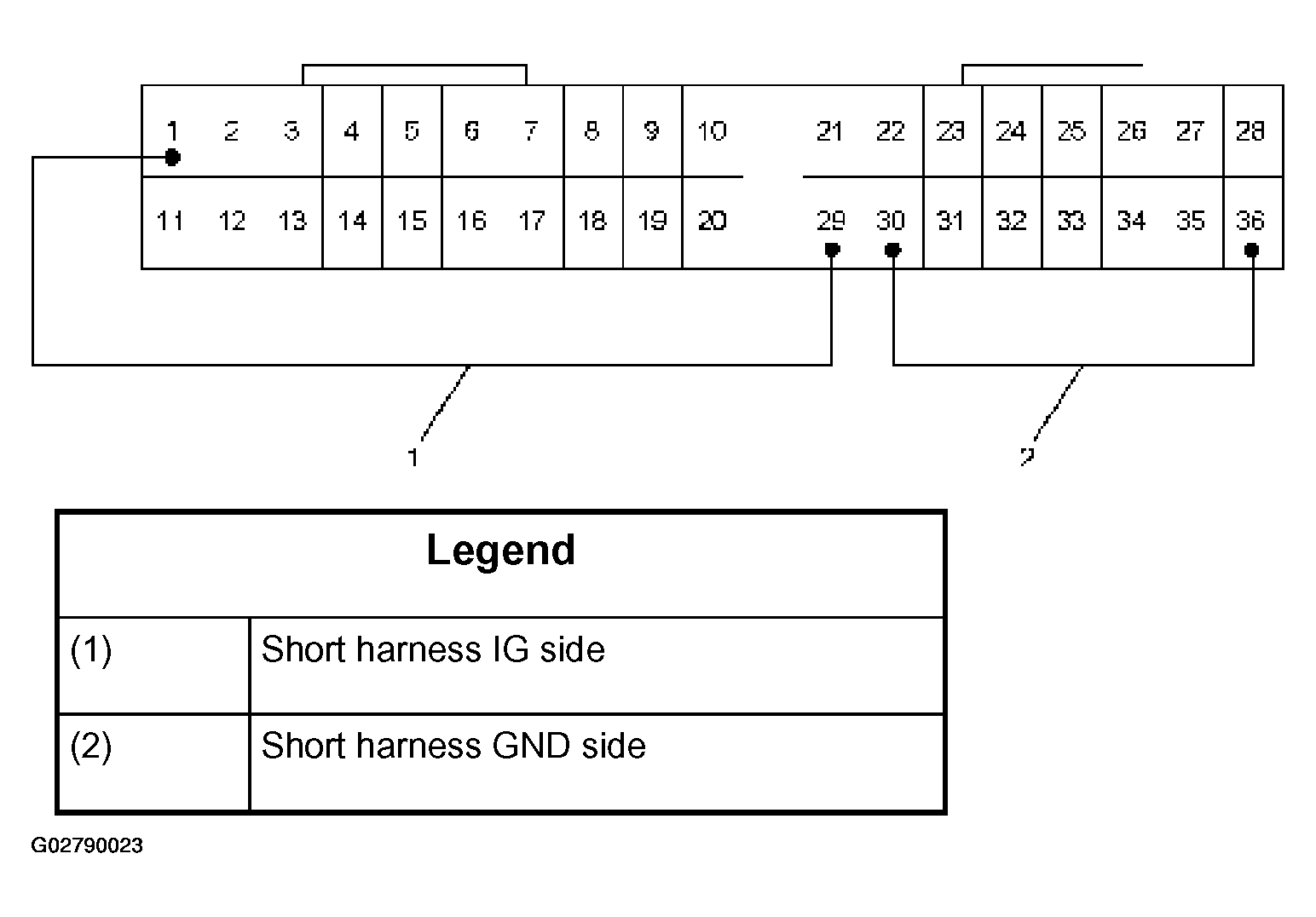

Fig 1: Transfer Controller Pin Assignment
G02790023Courtesy of ISUZU MOTOR CO.
