Knock Sensor (KS) LH - Removal and Installation: Removal

Vehicles with supercharger

1. Remove the supercharger. Refer to Intake Air Distribution and Filtering .
2. Remove the noise isolator.

Vehicles without supercharger

3. Remove the intake manifold. Refer to Engine .

All vehicles

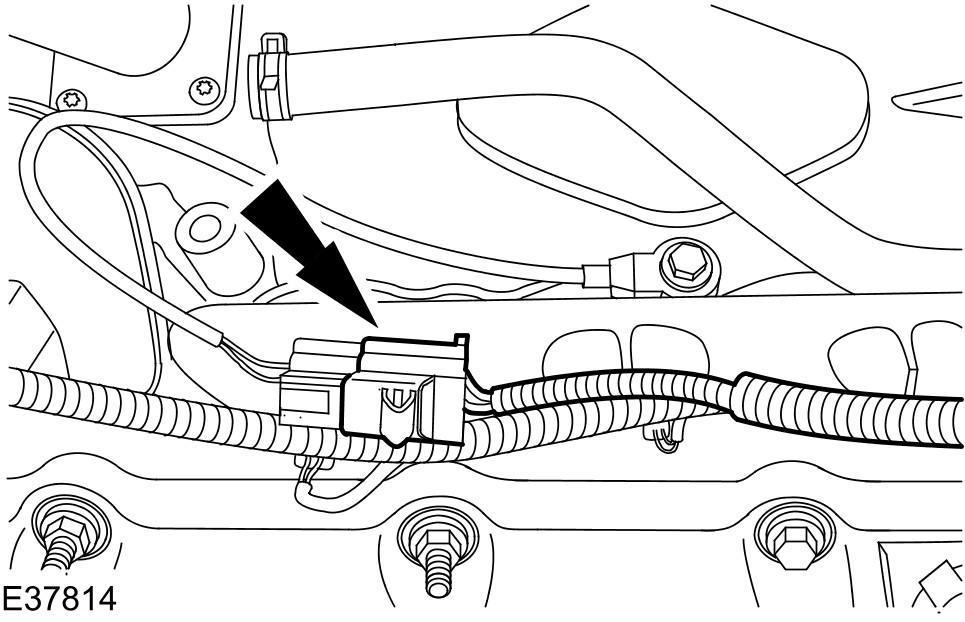

4. Disconnect the knock sensor (KS) electrical connector.

   Courtesy of JAGUAR CARS, INC.

5. Remove the KS.

   Courtesy of JAGUAR CARS, INC.
