Fuel Temperature Sensor - Removal and Installation: Removal

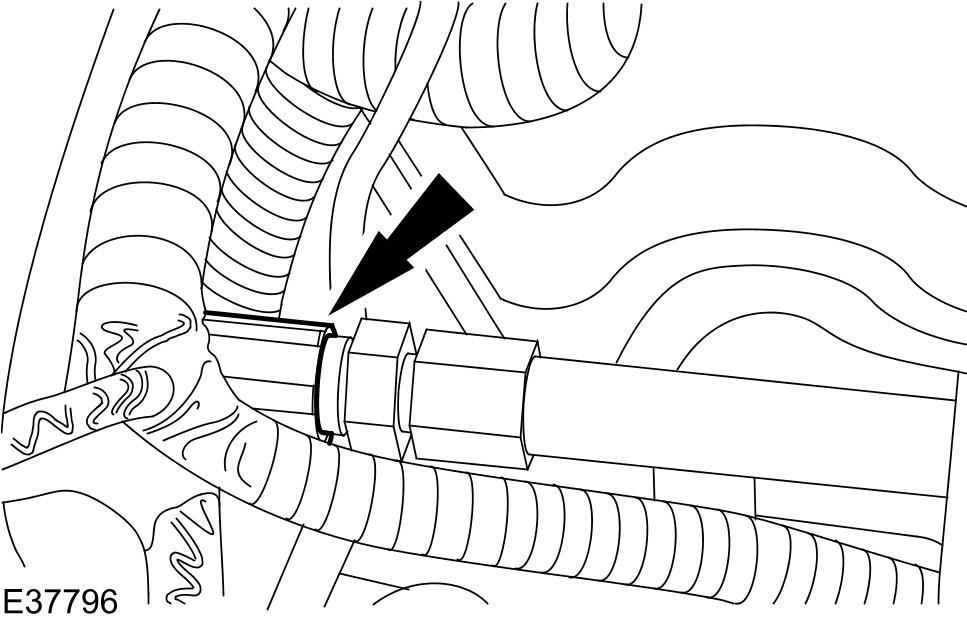

  1. Disconnect the fuel temperature sensor electrical connector.
    GJ0002304Courtesy of JAGUAR CARS, INC.

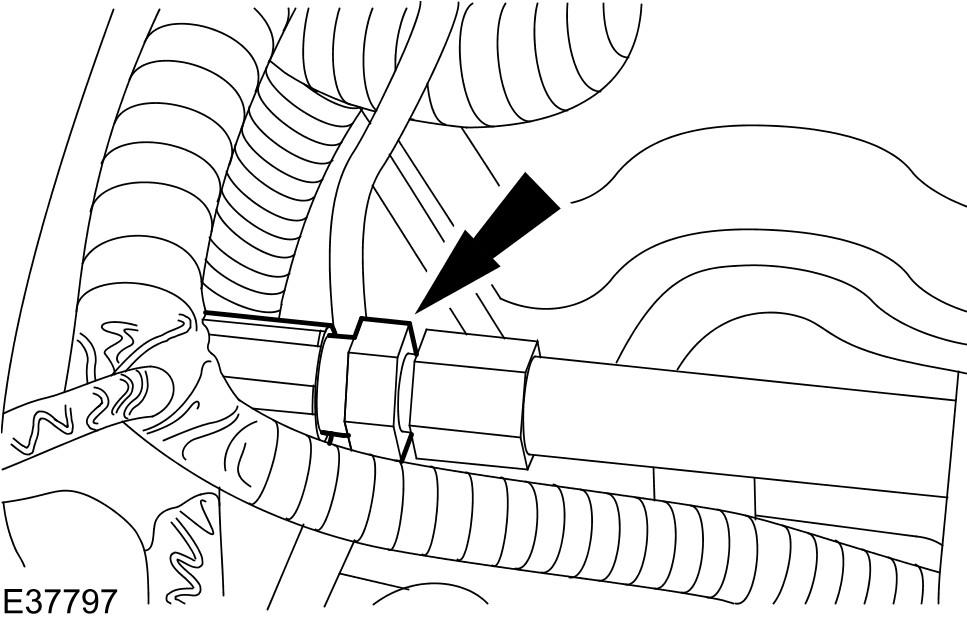

  2. Remove the fuel temperature sensor.
    GJ0002305Courtesy of JAGUAR CARS, INC.
