3.1.5 Using Table 5

Table 5 contains specific Mode $06 related data. This table is to be used as a tool to cross reference any data received by a generic scan tool and identify any On-Board Diagnostic Monitor ID, PCODE, TID, Min, Max Values and scaling information. For Diagnostic Trouble Code P0130, P0131, P0132, P0133, P0131, P01340, P01370, P01380, P01390, P01400, see Fig 1, for Diagnostic Trouble Code P0031, P0032, P0036, P0130, P0131, P0132, P0133, P0134, P0137, P0138, P0139, P0140, P0150, P0151, P0152, P0153, P0154, P0157, P0158, P0159, P0160, P0401, P0420, P0430, P0441, P0442, P0456, P0458, P0459, P0489, P0490, see Fig 2.

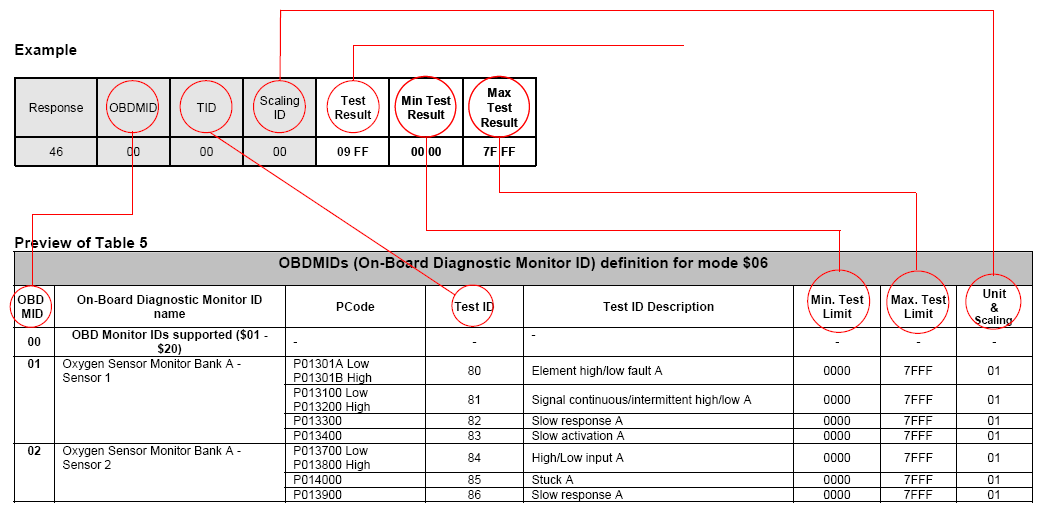

Fig 1: On-Board Diagnostic Monitor ID, PCODE, TID, Min, Max Values And Scaling Information

Courtesy of JAGUAR CARS, INC.

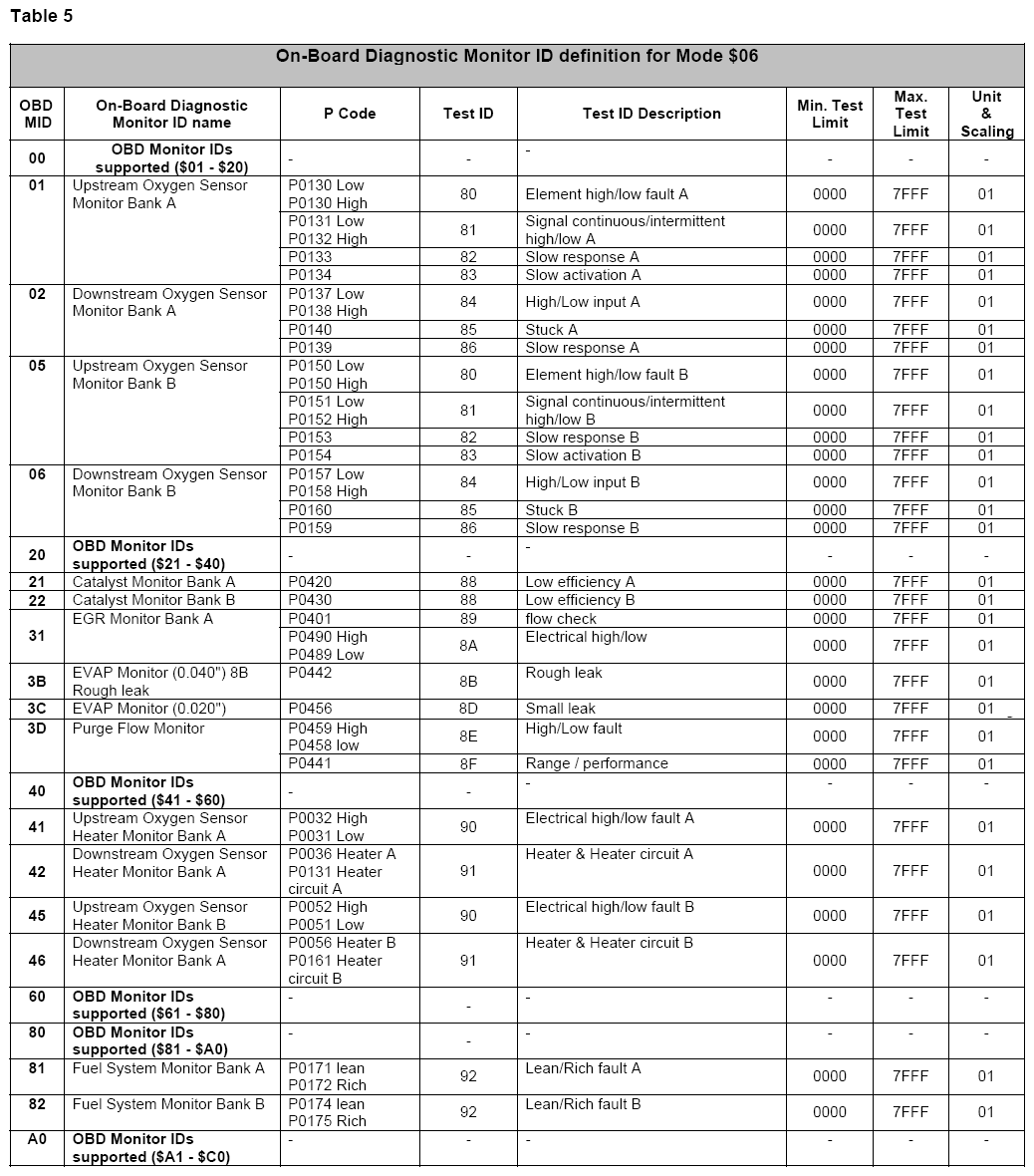

Fig 2: On-Board Diagnostic Monitor ID Definition For Mode $06

Courtesy of JAGUAR CARS, INC.
