4.5.2 Monitoring Structure

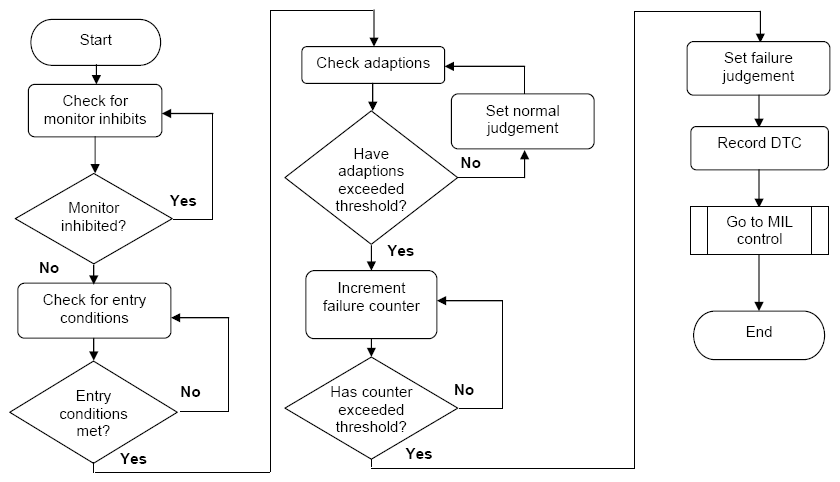

Fig 1: Monitoring Structure
Courtesy of JAGUAR CARS, INC.

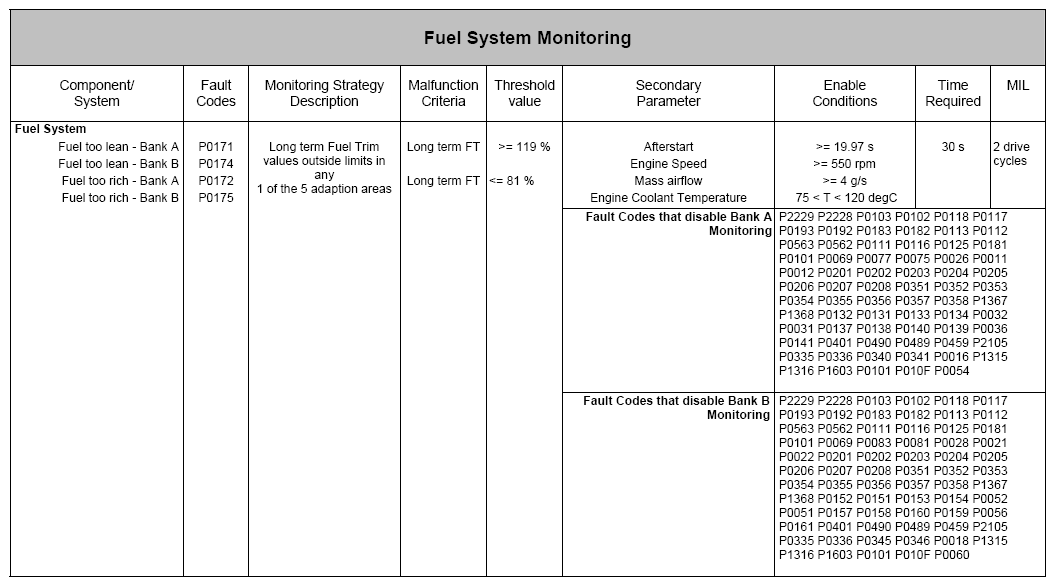

Fig 2: Fuel System Monitoring (Diagnostic Trouble Codes P0171, P0172, P0174, P0175 - 1 Of 2)
Courtesy of JAGUAR CARS, INC.

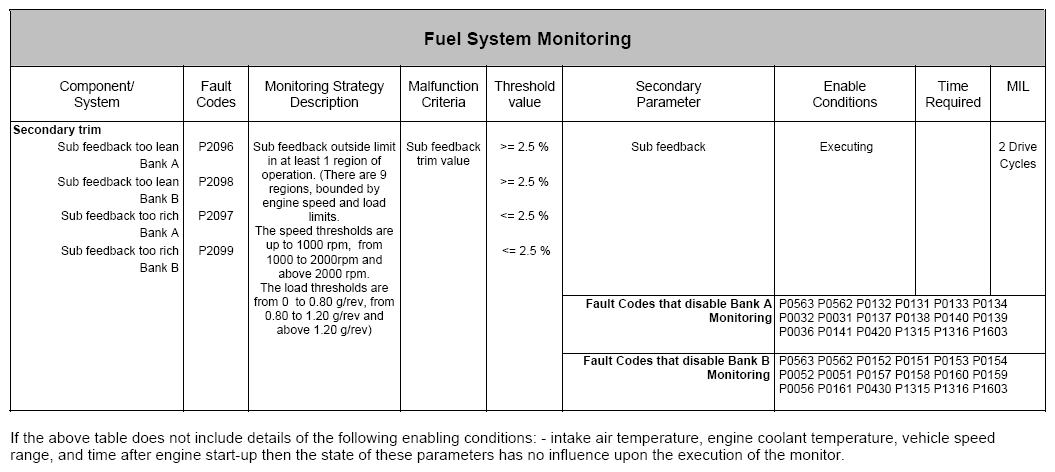

Fig 3: Fuel System Monitoring (Diagnostic Trouble Codes P2096, P2097, P2098, P2099 - 2 Of 2)
Courtesy of JAGUAR CARS, INC.
Courtesy of JAGUAR CARS, INC.
Courtesy of JAGUAR CARS, INC.
Courtesy of JAGUAR CARS, INC.
