Engine Control Module
>>
Locations
>>

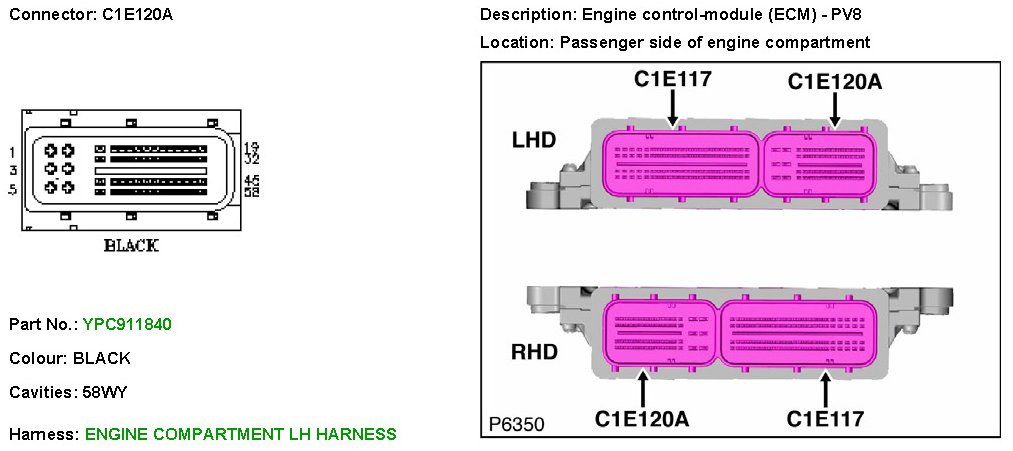

C1E120A
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
C1E120A
C1E120A

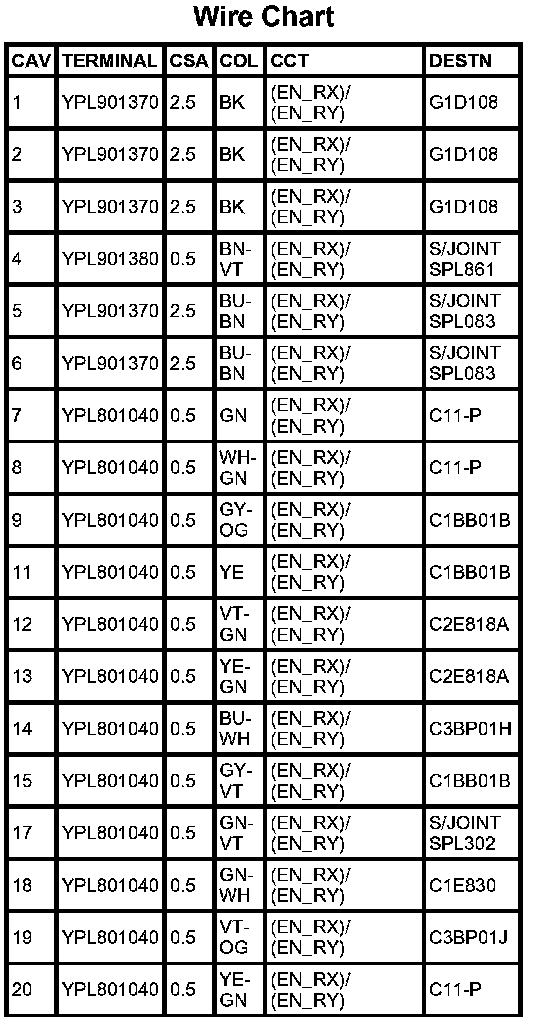

C1E120A (Part 1):

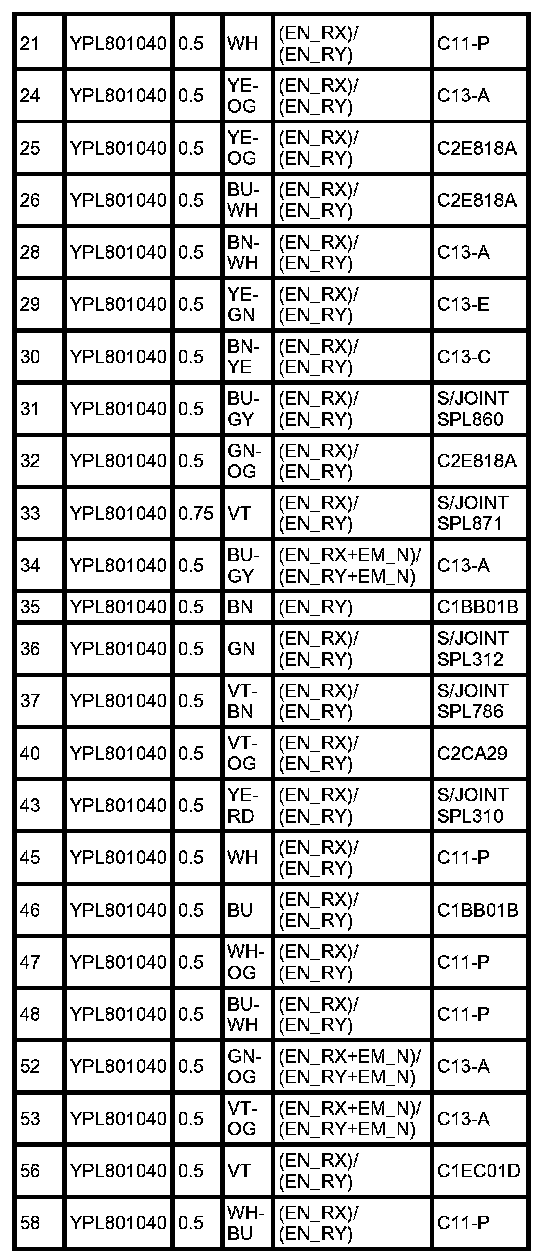

C1E120A (Part 2):
C1E120A (Part 3):
