Alignment Specifications




Wheel Alignment Specifications

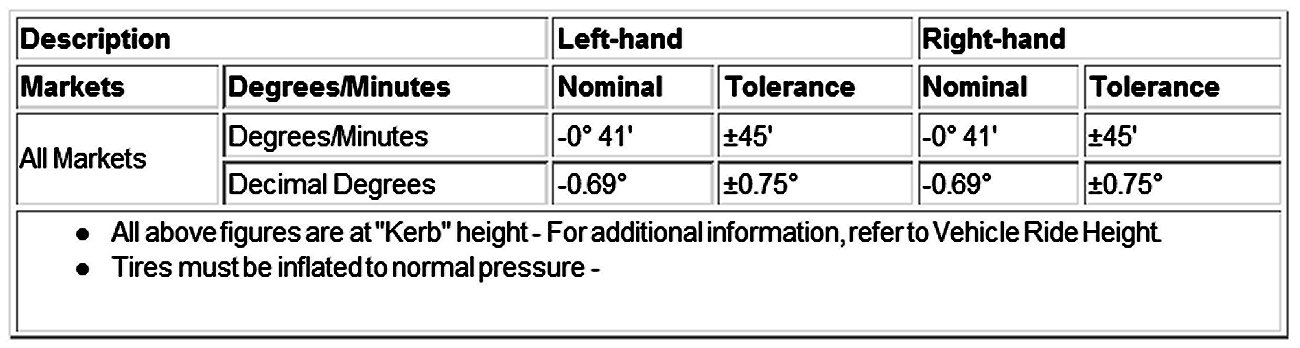

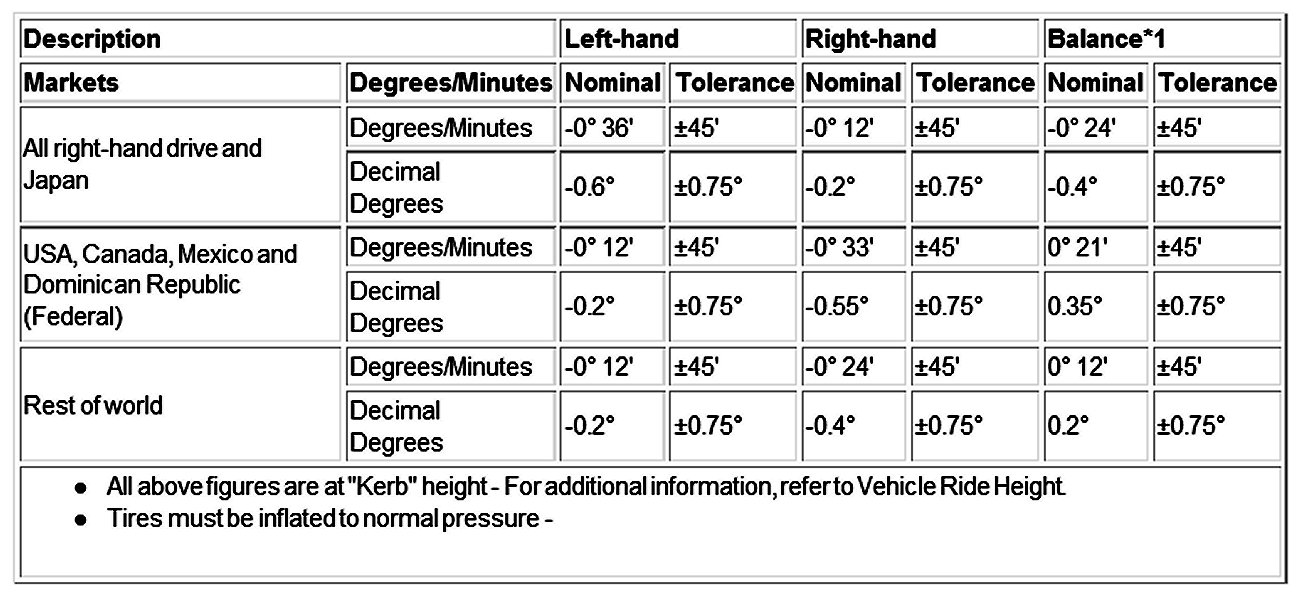

Front Camber

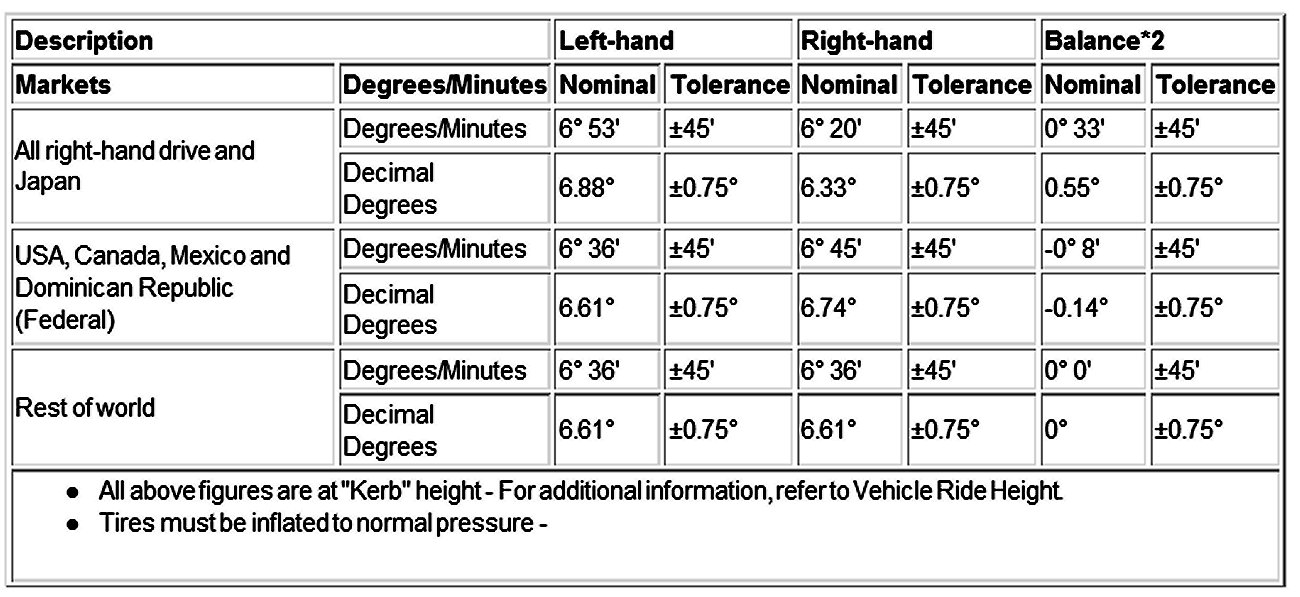

Front Caster

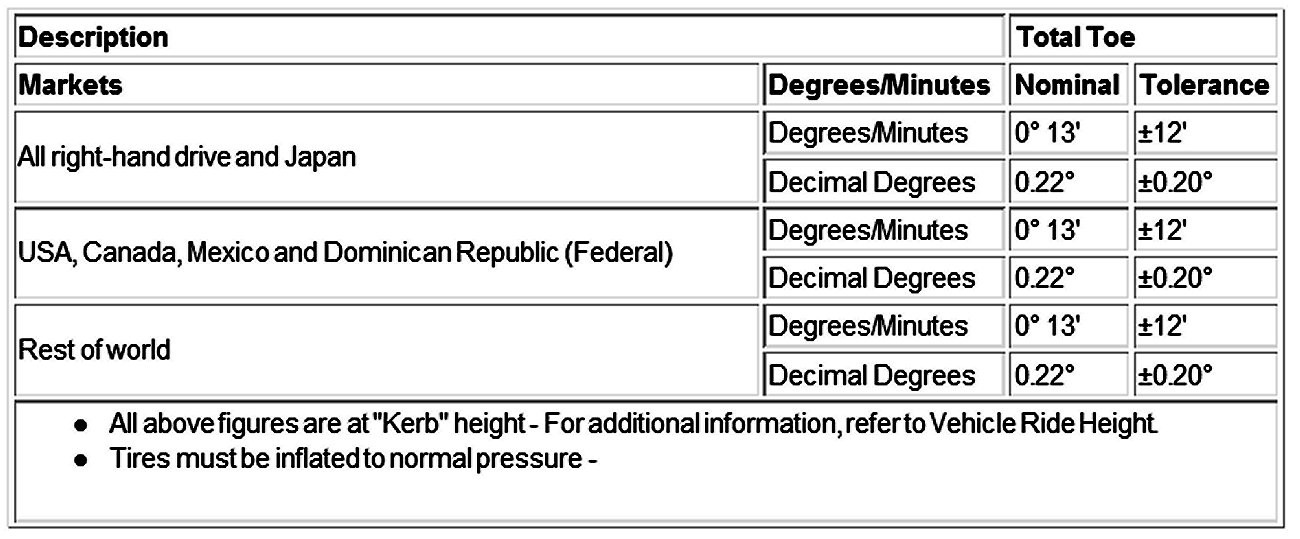

Front Toe






Rear Camber

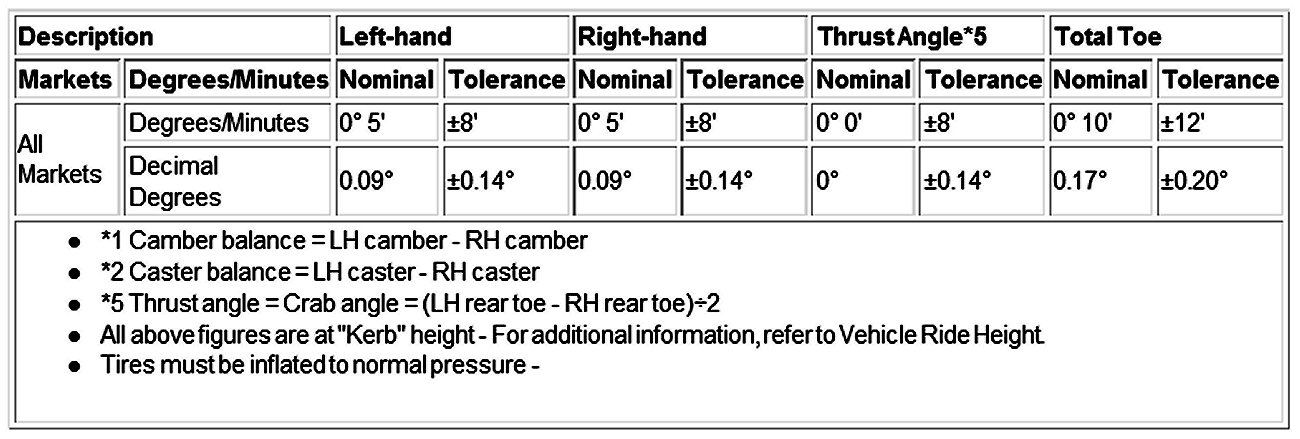

Rear Toe
