Navigation System Module: Removal

  1. Remove the cover and disconnect the battery ground cable. Refer to Specifications information.
  2. Release the navigation system module bracket.
    • Remove the 4 nuts.
      GJ0009190

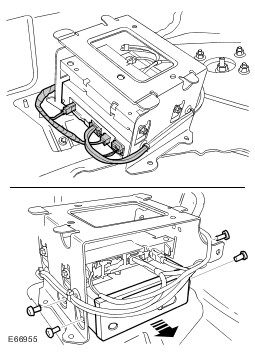

  3. Remove the navigation system module.
    • Disconnect the 4 electrical connectors.
    • Remove the 4 Torx bolts.
      GJ0009191
