Antenna Module - Export: Removal

  1. Remove the headliner. Refer to HEADLINER .
  2. Disconnect the battery power lead connector from the antenna module.
  3. Disconnect the antenna module connector from the integral antenna (Fig 1 ).
  4. Remove the mounting screws and the antenna module.
  5. Disconnect the coax lead from the antenna module.

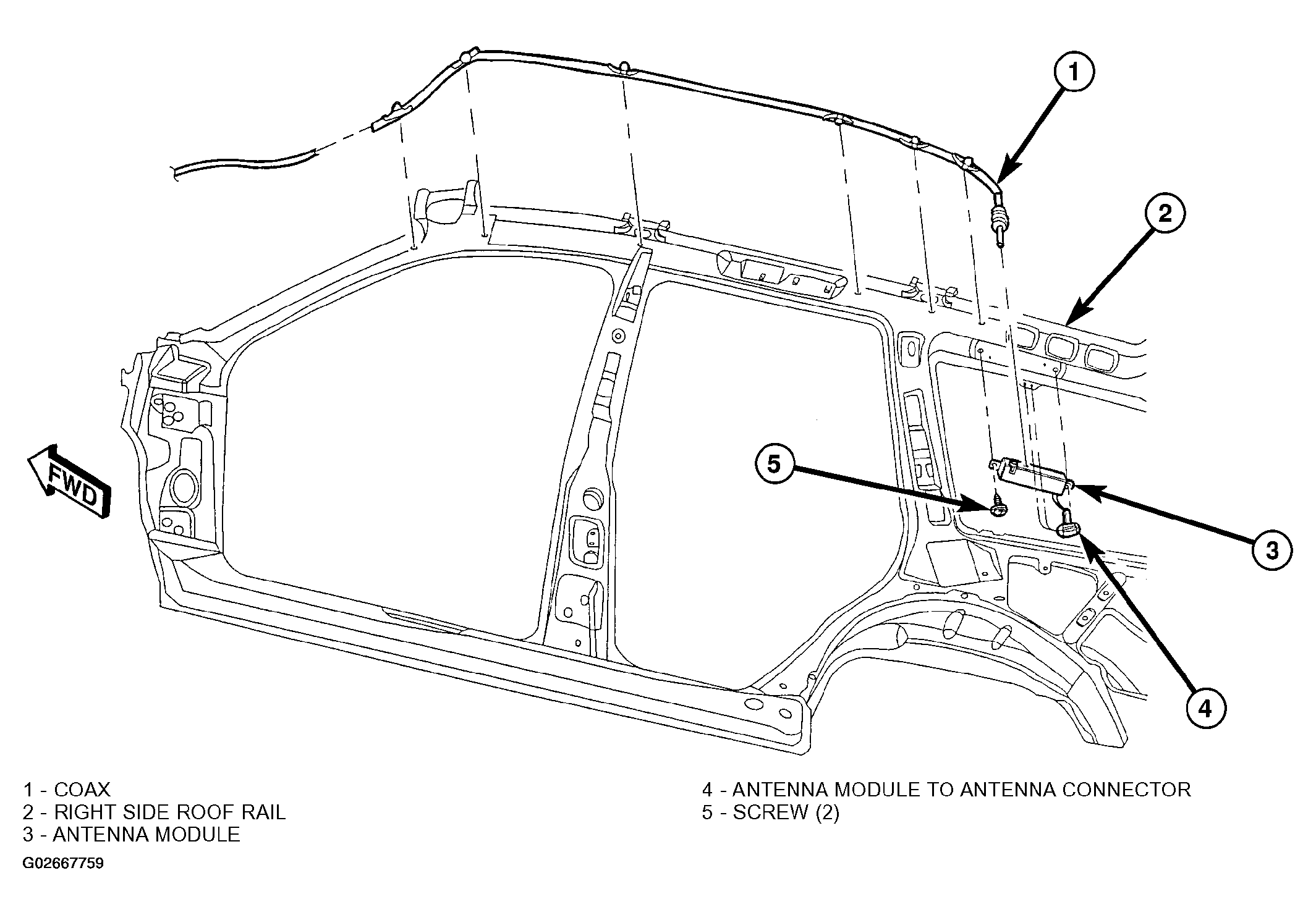

    6. Fig 1: Removing Antenna Module (Export)
    G02667759Courtesy of DAIMLERCHRYSLER CORP.
