Receiver

RECEIVER

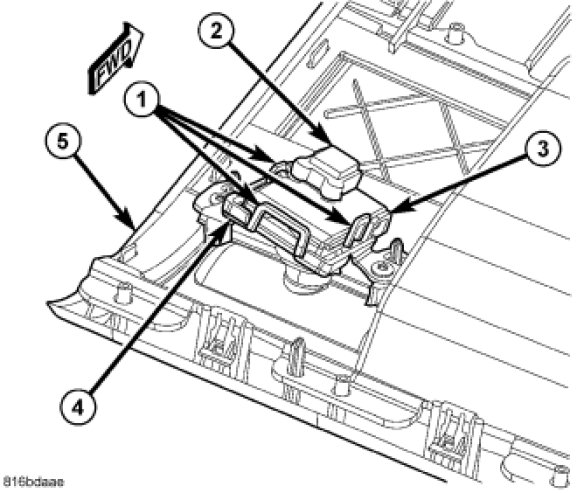

1. Position the intrusion sensor receiver (3) to the mounting bracket (4) on the left rear corner of the overhead console housing (5).
2. Press the receiver down until the three latch features (1) of the bracket are fully engaged.
3. Reconnect the take out of the overhead wire harness to the connector receptacle (2) on the forward end of the receiver housing.
4. Reinstall the overhead console onto the headliner. Overhead Console - Installation.
5. Reconnect the battery negative cable.
