Installation







INSTALLATION

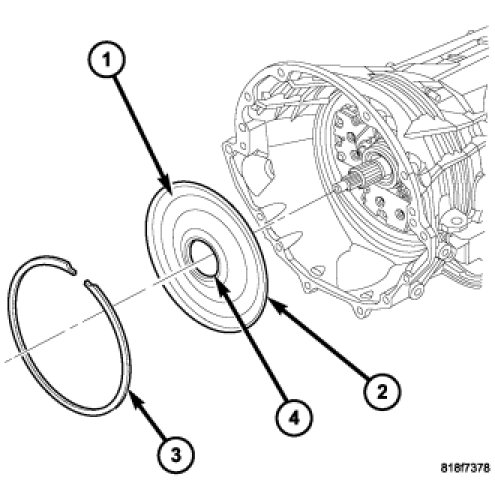

NOTE: To avoid contamination and garter spring dislodgement, do not handle the front cover seal (4) when positioning the front cover into the transmission case.

1. Position a new front cover (1) into the transmission case.




2. Using the front cover installation tool 9955 (1) and a dead-blow mallet, install the front cover into transmission case.




3. Install the snap ring (3) into the transmission case.
4. Apply RTV silicone to the oil pan and install the transmission oil pan.
5. Tighten the bolts to 12 Nm (105 in. lbs.).
