Transponder-Tire Pressure-Left Front

Component ID: 211

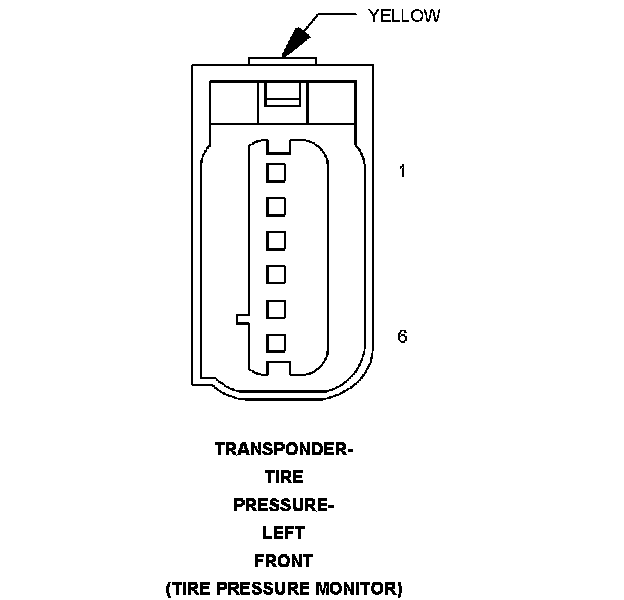

Component : TRANSPONDER-TIRE PRESSURE-LEFT FRONT

Connector:
Name : TRANSPONDER-TIRE PRESSURE-LEFT FRONT
Color : YELLOW
# of pins : 6
Qualifier : (TIRE PRESSURE MONITOR)

Pin Circuit Description
1 F202 18PK/GY IGNITION SWITCH OUTPUT (RUN-START)
2 D508 20WT/GY COM-LIN TIRE PRESSURE MONITOR LAN
3 Z904 20BK/OR GROUND
4 Z904 20BK/OR GROUND
5 - -
6 - -

Component Location - 13
