Speaker-Left Rear

Component ID: 264
Component : SPEAKER-LEFT REAR

Connector:

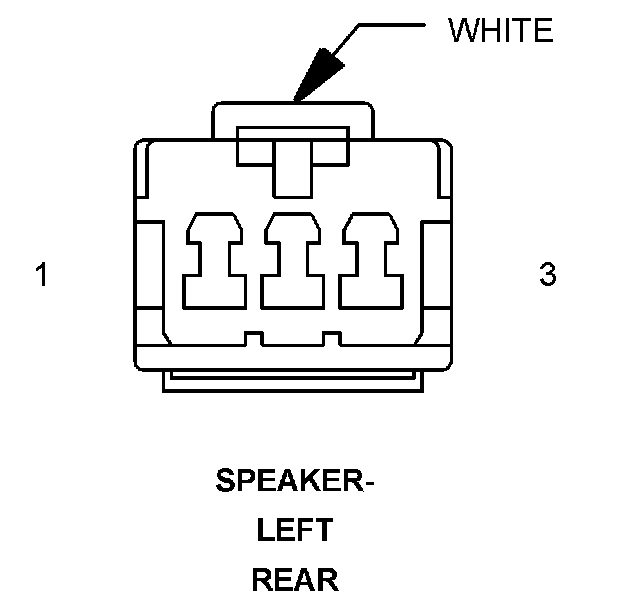

Name : SPEAKER-LEFT REAR
Color : WHITE
# of pins : 3

Pin Circuit Description
1 X51 18DG/DB LEFT REAR SPEAKER (+)
Pin Circuit Description
1 X205 18GY/LG AMPLIFIED LEFT REAR SPEAKER (+)
2 - -
3 X57 18DG/BR LEFT REAR SPEAKER (-)
3 X295 18GY/DG AMPLIFIED LEFT REAR SPEAKER (-)

Component Location - 49
