Defroster Duct - Installation

INSTALLATION

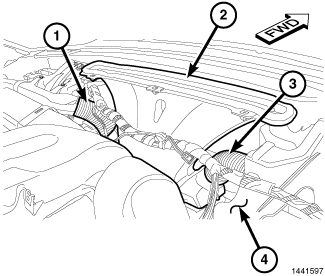

NOTE: Illustration shown with instrument panel removed from vehicle for clarity.

NOTE: LHD model shown. RHD model similar.





1. Position the defroster duct (2) into the top of the instrument panel (4).
2. Connect the left and right demister hoses (1 and 3) to the defroster duct.
3. Install the lower and upper instrument panel covers Instrument Panel Cover - Installation.
