AC Power Outlet - Installation






INSTALLATION

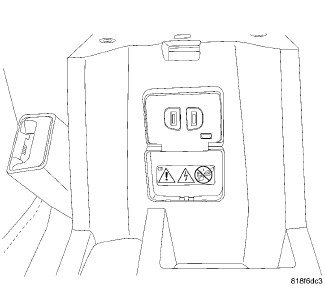

1. Install the AC power outlet.
2. Connect electrical connector.
3. Install the center console, Floor Console - Installation.
4. Connect the battery negative cable.
