Valve Body - Assembly

ASSEMBLY






CAUTION: Do not re-use the lip seal. Apply CVT fluid when installing the lip seal.

1. Install the new lip seal (1)(Figure 1) into the transaxle case.





2. Install the stepping motor (1)(Figure 2) onto the control valve body. Install and tighten the mounting bolts to 8 Nm (70 in. lbs.).

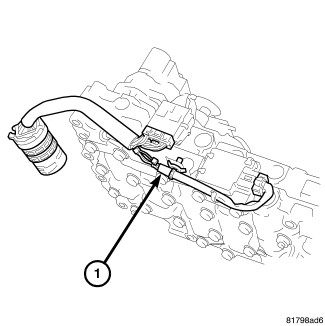

3. Install the valve body harness (1)(Figure 3) onto the control valve body.






CAUTION: Ensure the manual valve is free of dirt, lint or other debris. Apply CVT fluid when installing the manual valve.

4. Install the manual valve (1)(Figure 4) into the control valve body.

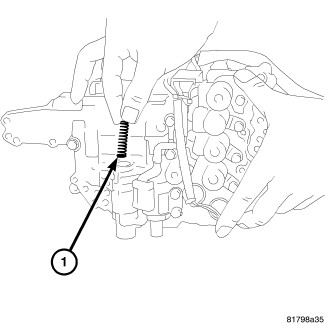

5. Install the return spring (1)(Figure 5) into the control valve body.






CAUTION: Apply CVT fluid when installing the pulley ratio linkage.

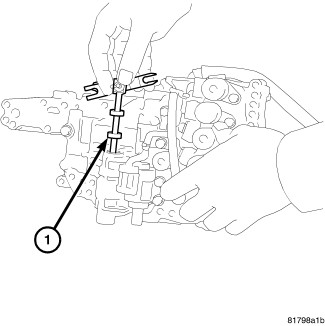

6. Hook the pawl of the pulley ratio linkage (1)(Figure 6) onto the stepping motor and install it on the control valve.
