Tubes, Fuel Drain: Description: Description

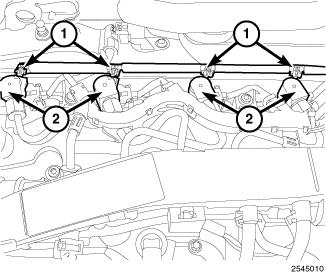

Fig 1: Fuel Drain Tubes & Injectors

Courtesy of CHRYSLER GROUP, LLC

The fuel drain tubes (1) connect to the back of all four injectors (2). These tubes are used to return unused fuel from the fuel injectors (2) to the tank.
