Pump, Water: Installation: 6.2L

WARNING: This page is about a different car, the 2016 Dodge Charger and 2015 Dodge Charger. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: Timing Chain Cover & Bolt

Courtesy of CHRYSLER GROUP, LLC

Clean and inspect the mating surfaces of the timing chain cover (1) and the water pump.

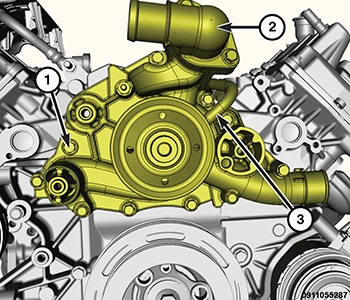

Fig 2: Water Pump Mounting Bolt & Thermostat Housing
Courtesy of CHRYSLER GROUP, LLC
Install the water pump and tighten the bolts (1) to the proper specification. Refer to SPECIFICATIONS .
Install the lower radiator hose.
Install the upper radiator hose to the thermostat housing (2).

Fig 3: Belt Tensioner & Bolt
Courtesy of CHRYSLER GROUP, LLC
Install the belt tensioner assembly (2) and tighten the bolt (1) to the proper specification. Refer to SPECIFICATIONS .

Fig 4: Idler Pulley & Bolt
Courtesy of CHRYSLER GROUP, LLC
Install the idler pulley (1) and tighten the bolt (2) to the proper specification. Refer to SPECIFICATIONS .

Fig 5: Coolant Temperature (ECT) Sensor Electrical Connector, Heater Tube & Retaining Bolt
Courtesy of CHRYSLER GROUP, LLC
Connect the temperature sensor (2) wire hire harness connector (5).
Using a new O-ring seal, install heater tube (3). Tighten the bolt (1) to the proper specification. Refer to SPECIFICATIONS .
Install serpentine belt. Refer to BELT, SERPENTINE, INSTALLATION .
Install cooling fan assembly. Refer to FAN, COOLING, INSTALLATION .
Install the air cleaner body. Refer to BODY, AIR CLEANER, INSTALLATION, 6.2L .
Connect the negative battery cable.
Evacuate air and refill cooling system. Refer to STANDARD PROCEDURE .
Check cooling system for leaks. Refer to DIAGNOSIS AND TESTING .
