Clutch System: Flywheel: Removal: Removal

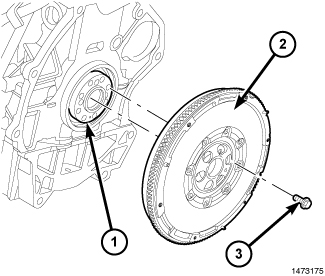

Fig 1: Removing/Installing Flywheel-To-Crankshaft Bolts And Flywheel Assembly

Courtesy of CHRYSLER GROUP, LLC

1 - CRANKSHAFT FLANGE

2 - FLYWHEEL

3 - BOLT (6)

WARNING:

Chrysler LLC does not manufacture any vehicles or replacement parts that contain asbestos. Aftermarket products may or may not contain asbestos. Refer to aftermarket product packaging for product information. Whether the product contains asbestos or not, dust and dirt can accumulate on manual clutch parts during normal use. Follow practices prescribed by appropriate regulations for the handling, processing and disposing of dust and debris.

Remove transaxle. Refer to REMOVAL .
Remove clutch pressure plate and disc. Refer to DISC, CLUTCH, REMOVAL .
Remove the six flywheel-to-crankshaft bolts (3) and remove flywheel assembly (2).
