Oil Intake Control Valve - Installation

INSTALLATION





1. Lubricate the oil control valve (OCV) rubber O-ring seal with clean engine oil.

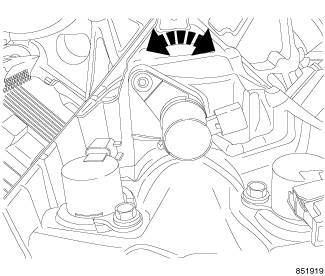

2. Install the OCV and rotate into position.





3. Install the OCV (3) retaining bolt (2) and tighten to 11 Nm (8 ft. lbs.).
4. Connect OCV electrical connector (1).
5. Install intake manifold Intake Manifold - Removal.
