Intrusion Module - Removal

REMOVAL





1. Disconnect and isolate the battery negative cable.

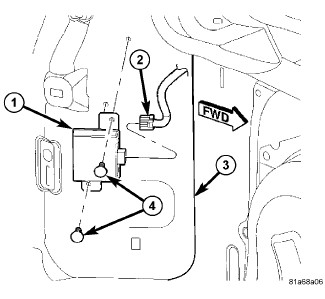

2. Partially remove the trim from the inside of the left inner D-pillar (3). C-Pillar Trim Panel - Removal.
3. Disconnect the take out of the body wire harness (2) from the connector receptacle on the forward-facing side of the intrusion module (1).
4. Remove the two plastic push-in fasteners (4) that secure the module to the inner D-pillar.
5. Remove the module from the inner D-pillar.
