Power Window Switch - Installation

INSTALLATION

FRONT

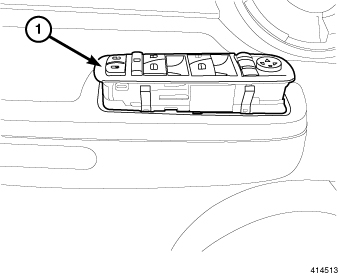

1. Position the switch assembly (1) close enough to the panel and connect the electrical harness connector.
2. Press evenly and firmly on the switch to engage the clips.
3. Connect the battery negative cable.

REAR

NOTE: Some interior trim packages may make switch removal difficult by traditional means, and require interior trim panel removal to service the switch assembly.

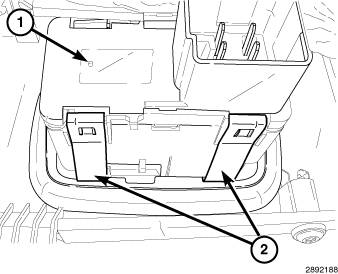

1. Install the switch (1) in the trim panel engaging the four clips (2) that secure the switch.
2. Position the trim panel close enough to the door and connect the electrical connector.
3. Install the rear door interior trim panel, Rear Door Trim Panel - Installation.
