Bracket, Engine Mount, Right: Installation

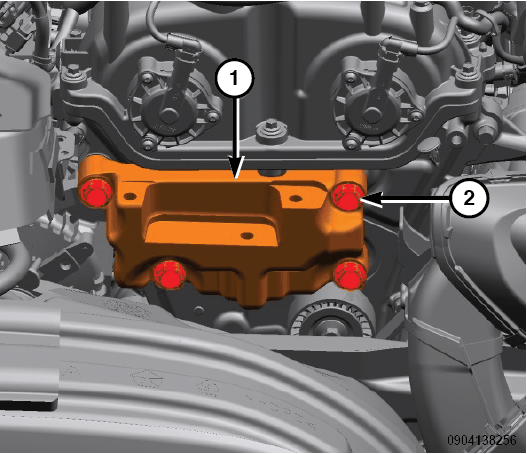

GC0186559Courtesy of CHRYSLER GROUP, LLC
  1. Install the right engine mount bracket (1) with the four bolts (2) hand tight.

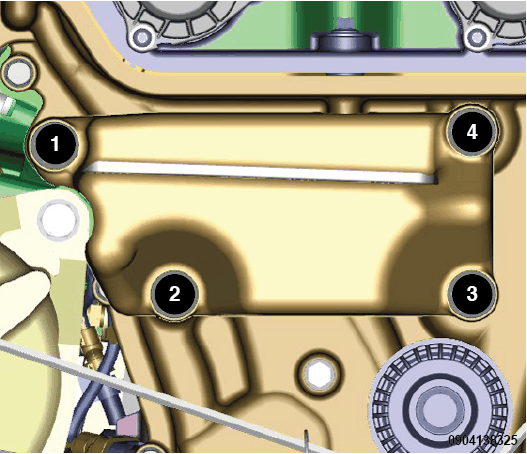

    Fig 1: Engine Mount Bracket Bolts Tightening Sequence
    GC0186526Courtesy of CHRYSLER GROUP, LLC
  2. Tighten the four engine mount bracket bolts in the sequence shown in illustration to the proper torque specification. Refer to (TORQUE SPECIFICATIONS ).
  3. Install the right engine mount insulator. Refer to INSTALLATION  .
  4. Connect the negative battery cable. If equipped with an Intelligent Battery Sensor (IBS), connect the IBS connector to the negative battery cable.
