Repair Procedures: Removal

WARNING: This page is about a different variant/trim than selected.

NOTE: If the FPCM needs to be replaced, replace the plate cover assembly.

Remove the fuel pump module.
(Refer to " Removal ")

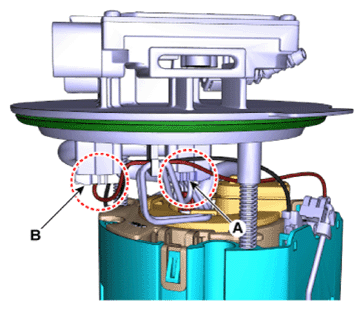

Disconnect the fuel pump connector (A) and fuel sender connector (B).

Courtesy of KIA MOTORS AMERICA, INC.

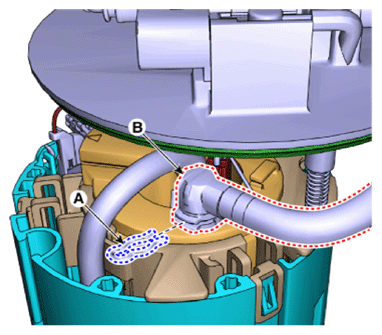

After releasing the fixing clip (A), remove the fuel feed tube quick-connector (B).

Courtesy of KIA MOTORS AMERICA, INC.

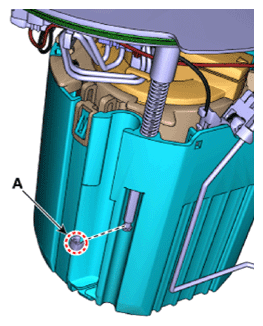

Remove the stopper (A).

Courtesy of KIA MOTORS AMERICA, INC.

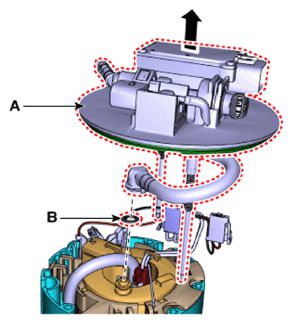

Remove the plate cover assembly (A) and O-ring (B).

Courtesy of KIA MOTORS AMERICA, INC.
