Reclining Front Limit Switch
This switch detects when the seatback is inclined fully forward and informs the ECU. See
Fig 1
.

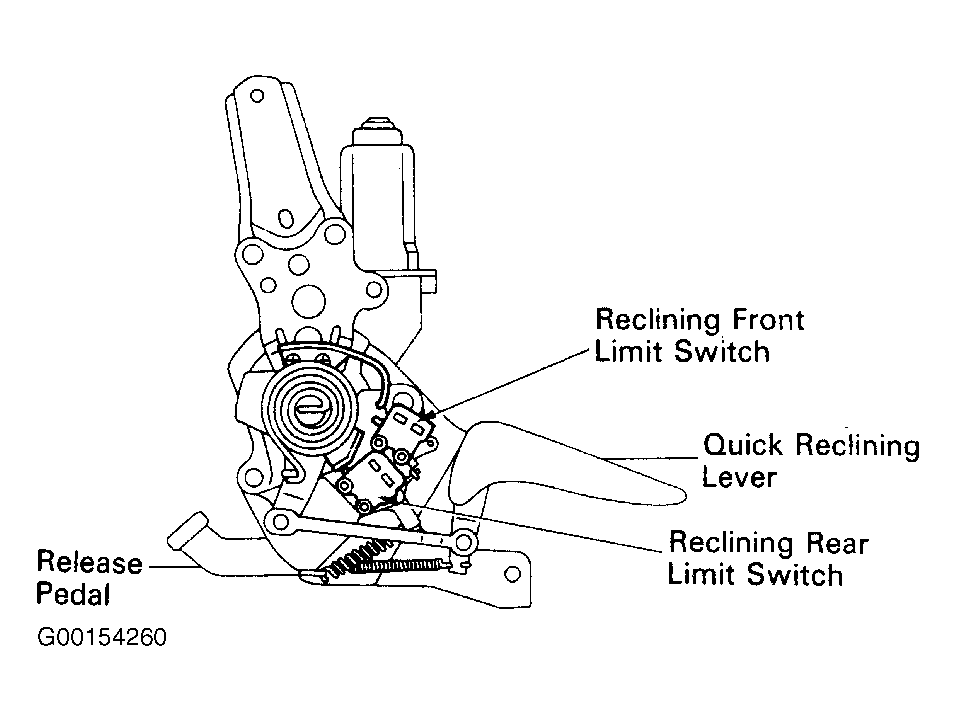

Fig 1: Description & Operation Of Reclining Front Limit Switch
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
