Anti-Theft System: Description

If one of the following conditions occurs when theft deterrent system is set (armed), system disables starter, locks all doors, flashes headlights and taillights, and sounds alarm. See Fig 1 and Fig 2 .

• Door, luggage compartment lid or hood is forcibly opened.
• Battery cable is disconnected then reconnected.

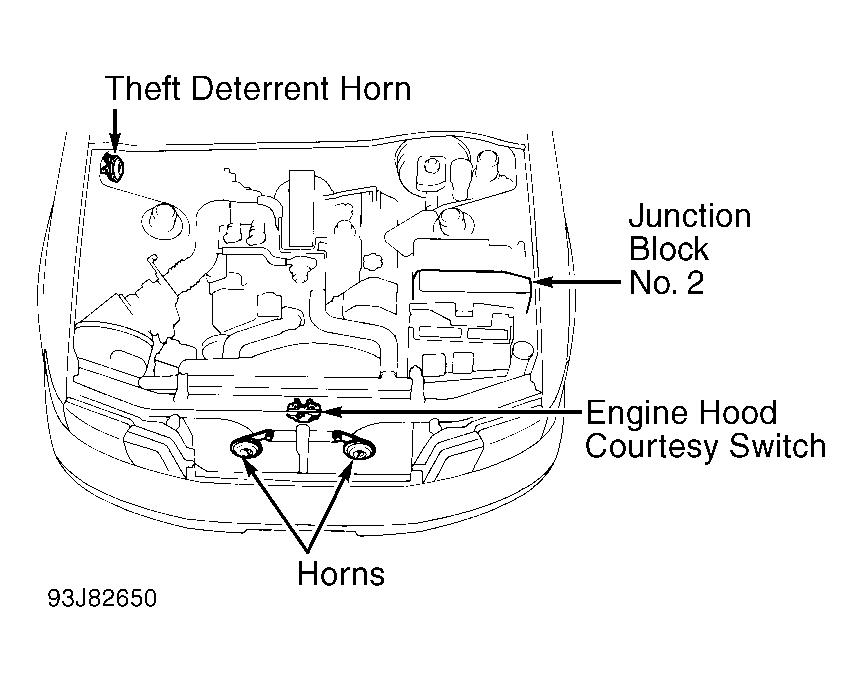

Fig 1: Theft Deterrent System Component Locations (LS400 - 1 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

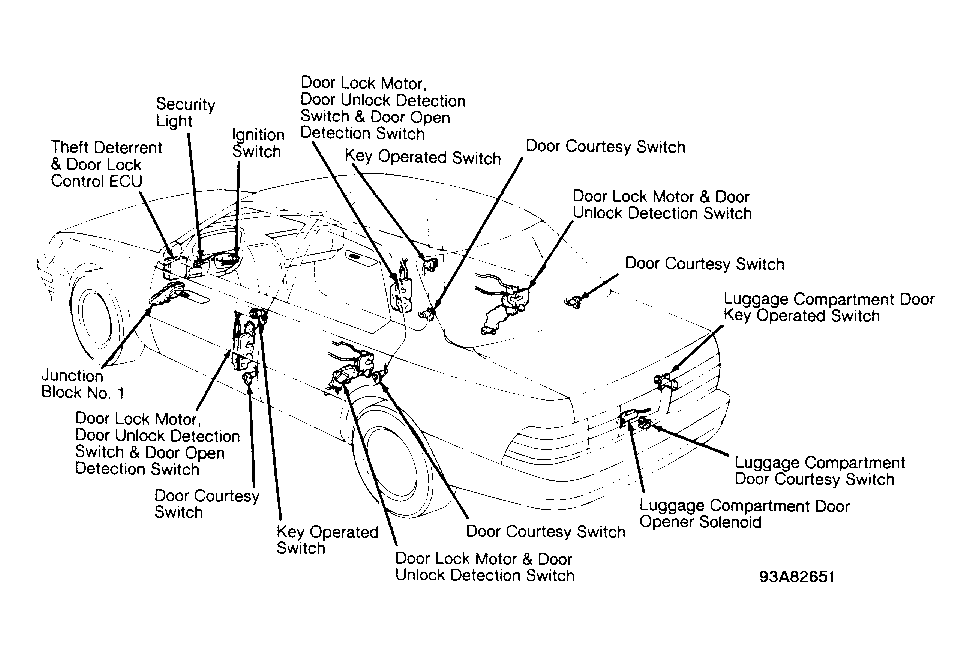

Fig 2: Theft Deterrent System Component Locations (LS400 - 2 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
