| A/C Compressor |
| Bolt |
36 (49) |
| Nut |
22 (30) |
| Air Intake Chamber Bolt/Nut |
13 (18) |

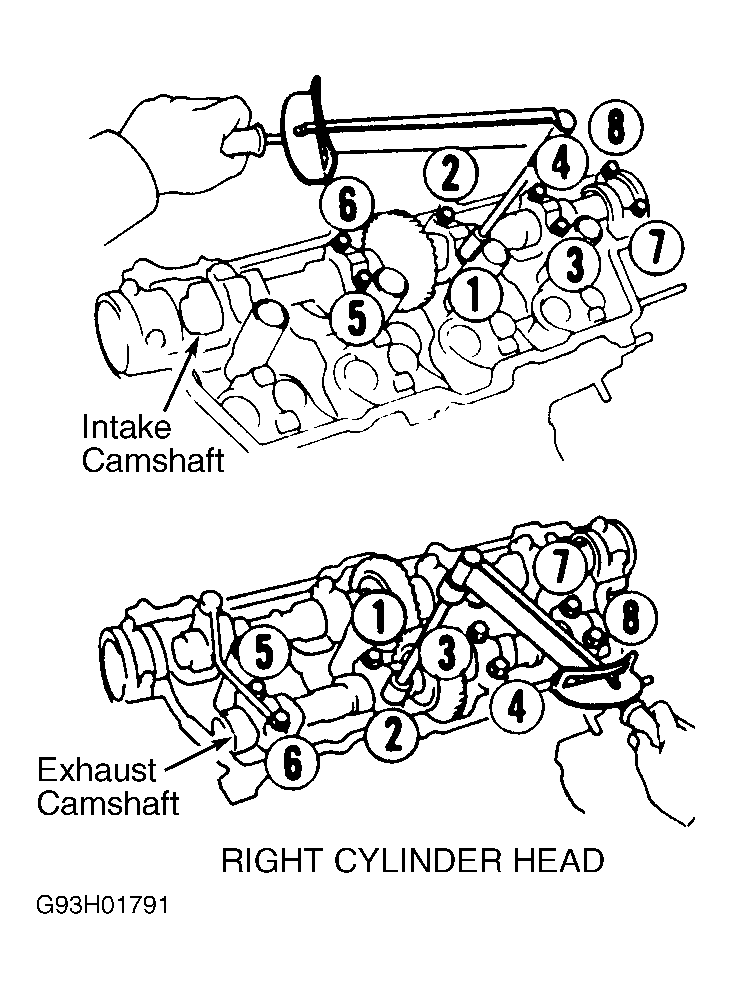

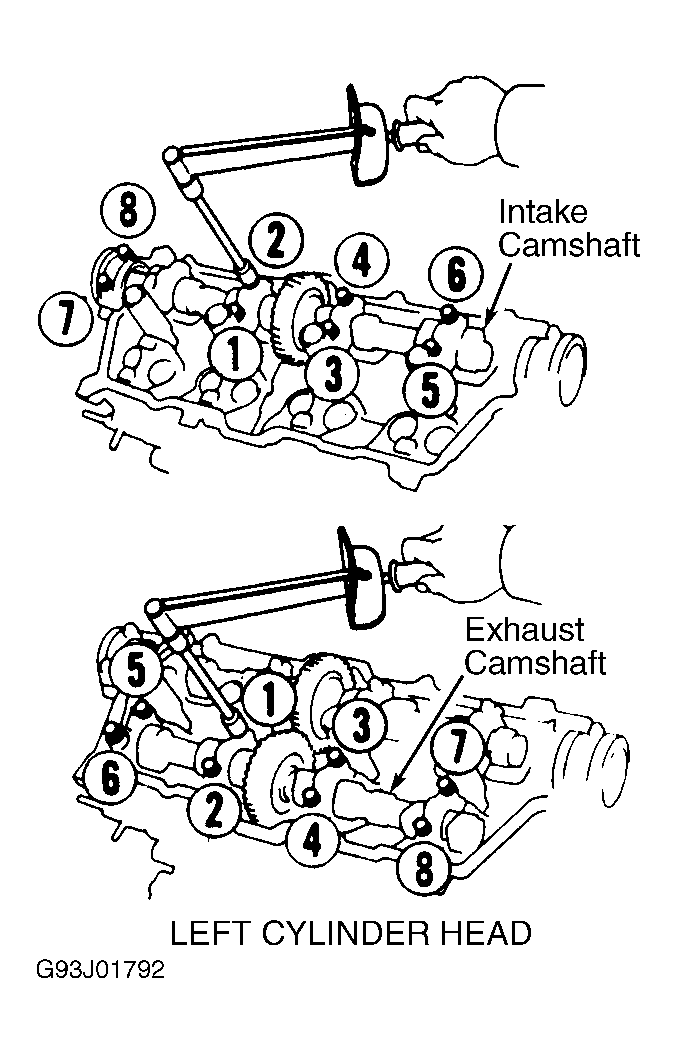

| Camshaft Bearing Cap Bolt |
12 (16) |
| Camshaft Sprocket Bolt |
80 (109) |
| Catalytic Converter-To-Exhaust Manifold Nut |
46 (62) |
| Catalytic Converter-To-Exhaust Pipe Bolt |
32 (43) |
| Cold Start Injector Fuel Line-To-Delivery Pipe Union Bolt |
11 (15) |
| Connecting Rod Cap Bolt |
| Step 1 |
18 (24) |
| Step 2 |
Additional 90 Degrees |
| Coolant Inlet Housing Bolt |
13 (18) |
| Coolant Inlet Housing Plug |
32 (43) |
| Crankshaft Pulley Bolt |
181 (245) |
| Crossmember Bolt/Nut |
| Bolt |
19 (26) |
| Nut |
|
| Cylinder Head Bolt |
| Step 1 |
29 (39) |
| Step 2 |
Additional 90 Degrees |
| Delivery Pipe Nut |
13 (18) |
| Distributor Housing Bolt |
13 (18) |
| Drive Belt Idler Pulley Bolt |
27 (37) |
| Drive Belt Tensioner Bolt/Nut |
12 (16) |
| Drive Plate-To-Crankshaft Bolt |
72 (98) |
| Drive Shaft Center Bearing Bolt |
36 (49) |
| Drive Shaft Flange Bolt |
58 (79) |
| EGR Pipe Bolt/Nut |
13 (18) |
| EGR Valve Adapter Bolt/Nut |
13 (18) |
| EGR Valve Bolt/Nut |
13 (18) |
| Engine Hanger Bolt |
27 (37) |
| Engine Mount-To-Crossmember Nut |
43 (58) |
| Exhaust Manifold Nut |
33 (45) |
| Front Coolant By-Pass Housing Nut |
13 (18) |
| Fuel Inlet Hose-To-Delivery Pipe |
29 (39) |
| Fuel Return Pipe Union Bolt |
26 (35) |
| Hydraulic Pump Bolt/Nut |
| 12-mm Head |
12 (16) |
| All Others |
22 (30) |
| IAC Valve Nut |
13 (18) |
| Intake Manifold Bolt/Nut |
13 (18) |
| Knock Sensor |
33 (45) |
| Main Bearing Cap |
| Bolt |
36 (49) |
| Nut |
| Step 1 |
20 (27) |
| Step 2 |
Additional 90 Degrees |
| Main Bearing Stud-To-Cylinder Block |
11 (15) |
| No. 1 & No. 2 Idler Pulley Bolt |
25 (34) |
| Oil Filter Bracket Bolt/Nut |
13 (18) |
| Oil Pan |
| No. 1 Oil Pan Bolt/Nut |
| 12-mm Head |
|
| 14-mm Head |
20 (27) |
| No. 2 Oil Pan Bolt/Nut |
|
| Oil Pump-To-Cylinder Block Bolt |
| 12-mm Head |
12 (16) |
| 14-mm Head |
22 (30) |
| Oxygen Sensor-To-Exhaust Pipe |
33 (45) |
| Power Steering Pump |
| Bolt |
29 (39) |
| Nut |
32 (43) |
| Pulsation Damper |
29 (39) |
| Power Steering Pump Pulley Nut |
32 (43) |
| Rear Coolant By-Pass Housing Nut |
13 (18) |
| Spark Plug |
13 (18) |
| Throttle Body Bolt/Nut |
13 (18) |
| Timing Belt Tensioner Bolt |
20 (27) |
| Torque Converter-To-Drive Plate Bolt |
25 (34) |
| Water Pump Bolt/Nut |
13 (18) |
| INCH Lbs. (N.m) |
| Baffle Plate Bolt/Nut |
69 (7.8) |
| Center Floor Crossmember Brace Bolt/Nut |
115 (13.0) |
| Cold Start Injector Bolt |
69 (7.8) |
| Crankshaft Position Sensor Bolt |
57 (6.4) |
| Crankshaft Rear Oil Seal Housing Bolt |
69 (7.8) |
| Distributor Cap Bolt |
34 (3.8) |
| Distributor Rotor Bolt |
34 (3.8) |
| Oil Level Sensor Bolt |
48 (5.4) |
| Oil Pump Cover Bolt |
89 (10.0) |
| Pick-Up Tube Bolt/Nut |
69 (7.8) |
| Timing Belt Rear Plate Bolt |
69 (7.8) |
| Valve Cover Bolt |
52 (5.9) |
