Oil Pump: Disassembly

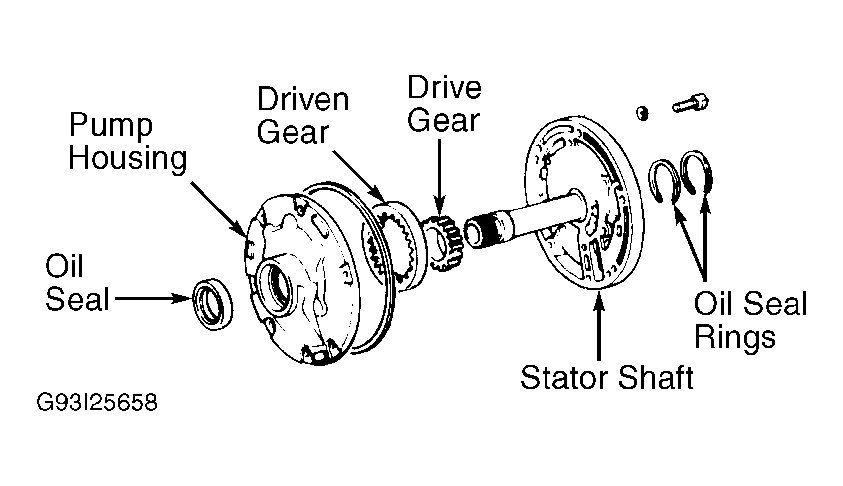

  1. Place oil pump on torque converter while working on pump. Remove seal rings from rear of oil pump. Remove bolts from rear of pump assembly. Remove stator shaft from pump housing. See Figure.
  2. Place reference mark on drive and driven gears for reassembly reference and remove from pump housing. If oil seal requires replacement, pry seal from housing with a screwdriver.
