Connector Identification

For power window connector views, see Fig 1 and Fig 2 .

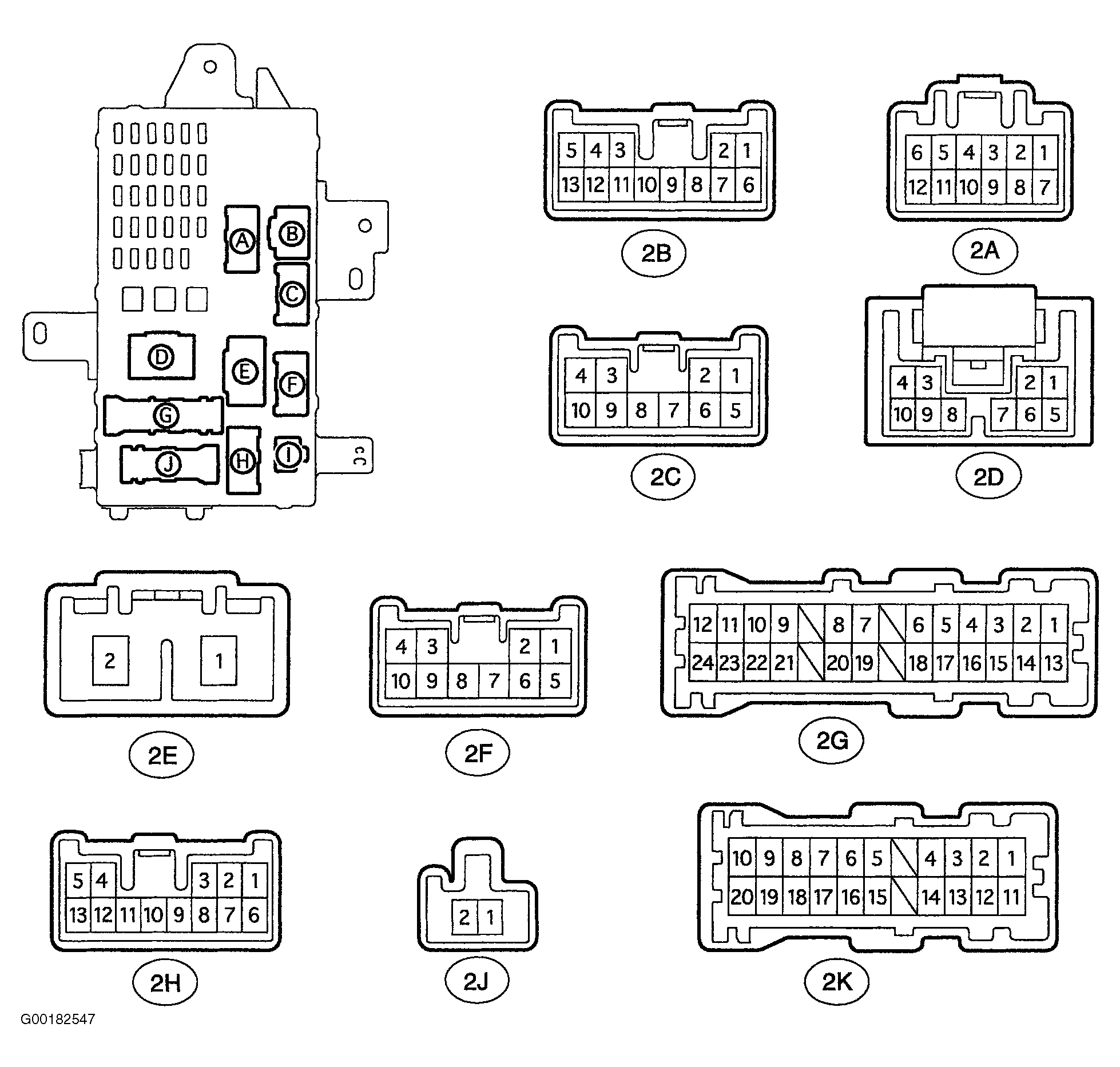

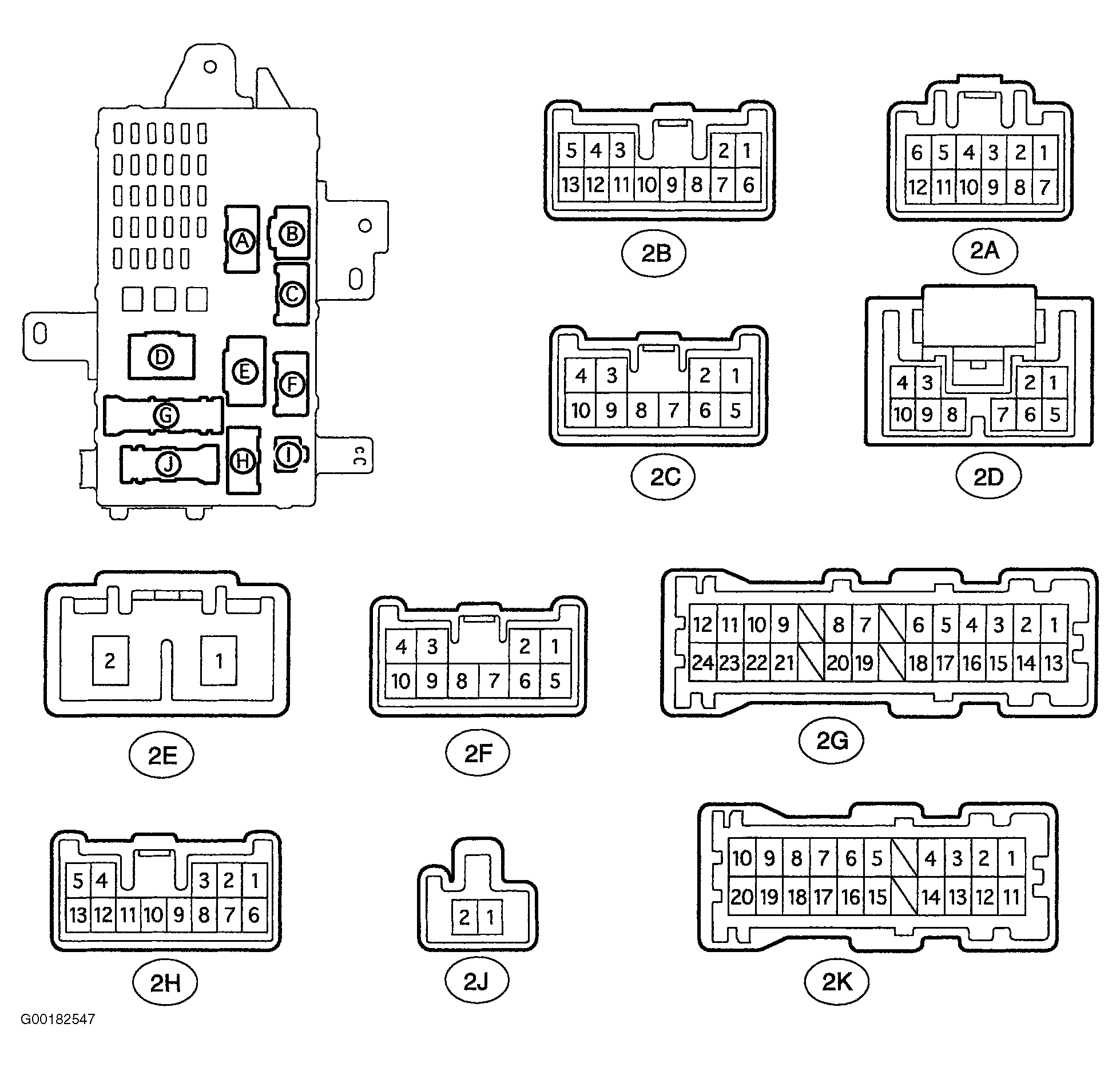

Fig 1: Identifying Driver Side Junction Block Connectors
G00182547Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

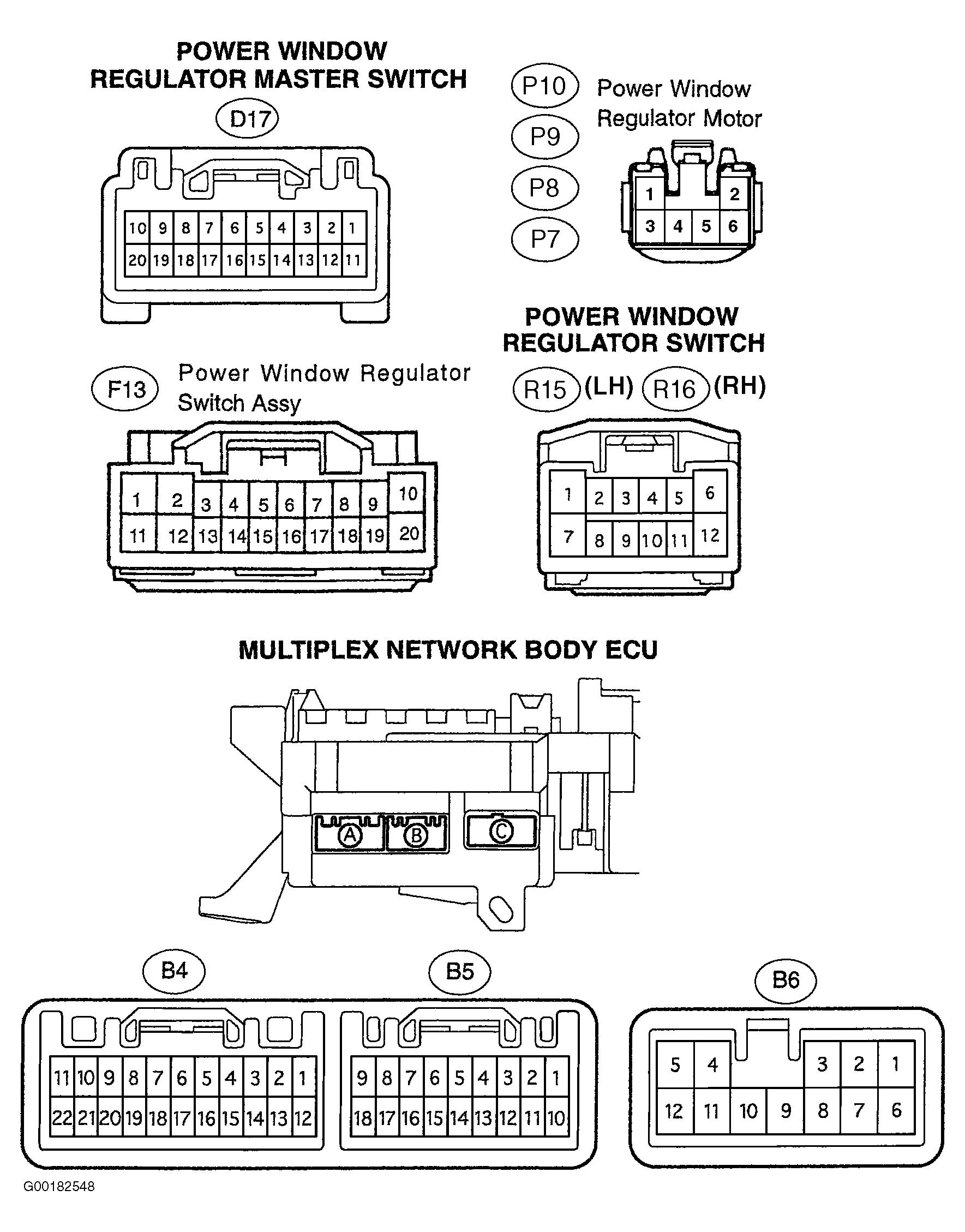

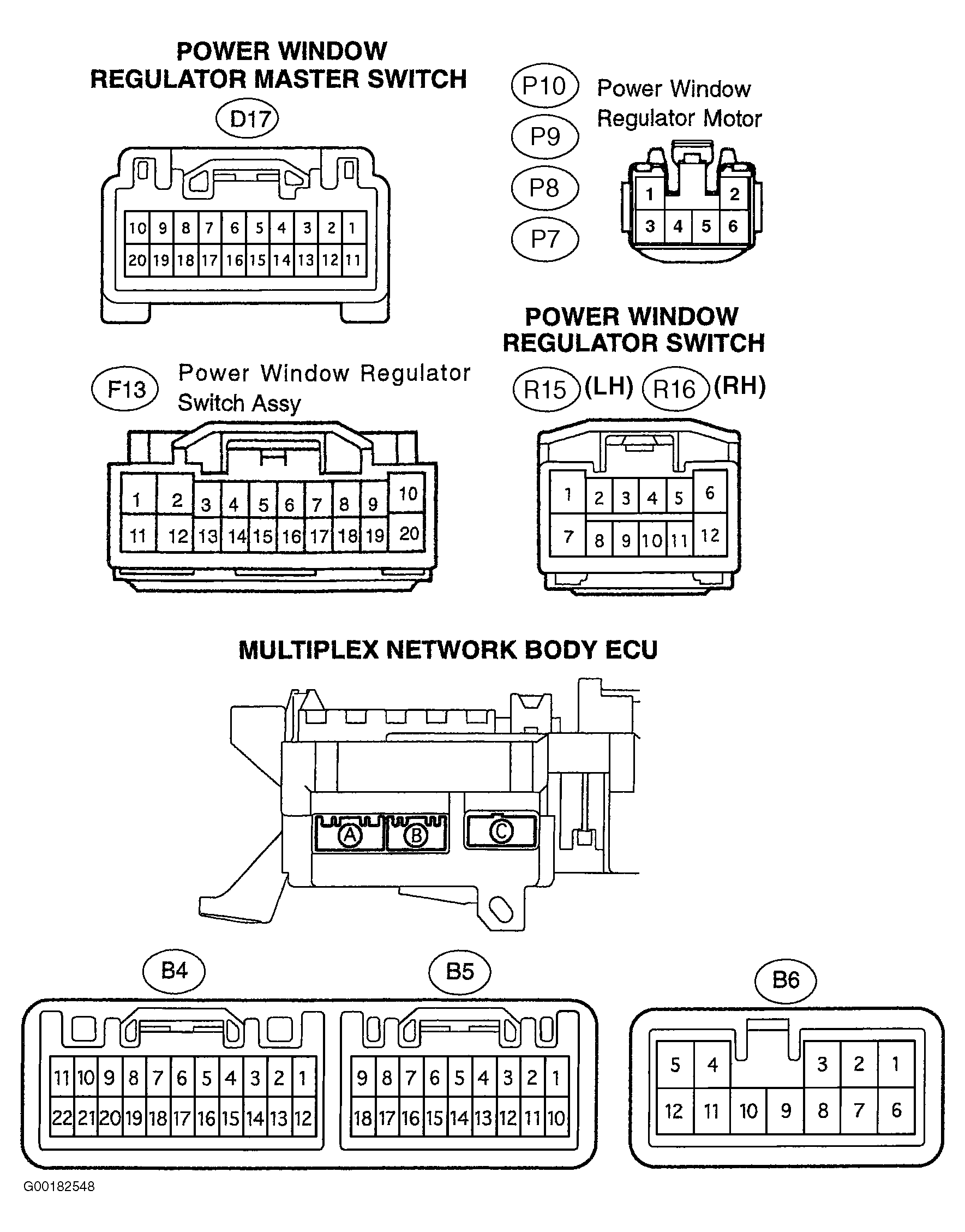

Fig 2: Identifying Power Windows Connectors
G00182548Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
